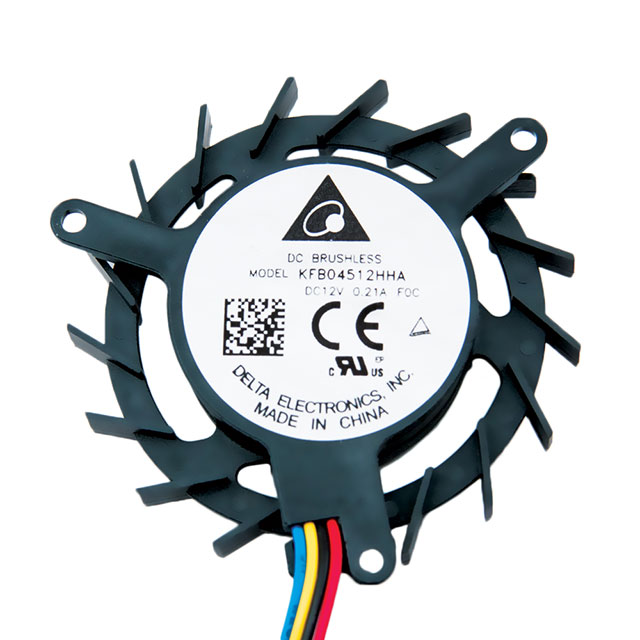

KFB04512HHAF0C

Obsolete

Delta Electronics

FAN IMP MTR 49X10.8MM 12VDC

Search across all available documentation for this part.

Obsolete

Delta Electronics

FAN IMP MTR 49X10.8MM 12VDC

Technical Specifications

Parameters and characteristics for this part

Specification	KFB04512HHAF0C

Air Flow	4.3 CFM
Air Flow	0.12 m³/min
Approval Agency	cURus, CE, TUV
Bearing Type	Ball
Current Rating (Amps)	0.18 A
Fan Type	Frameless, Motorized Impellers
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	50000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	28.5 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	2.16 W
RPM	5000 RPM
Size / Dimension [diameter]	49 mm
Static Pressure	0.171 in H2O
Static Pressure	42.6 Pa
Termination	4 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	12.5 VDC
Voltage Range [Min]	5 VDC
Weight	0.034 lb
Weight	15.42 g
Width [y]	10.8 mm

Part	Lifetime @ Temp.	Termination	Material - Blade	Approval Agency	Current Rating (Amps)	Weight	Weight	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Fan Type	Bearing Type	Size / Dimension [diameter]	Features	Noise	Power (Watts)	Width [y]	Material - Frame	Static Pressure	Static Pressure	RPM	Voltage Range [Min]	Voltage Range [Max]	Air Flow	Air Flow
Delta Electronics KFB04512HHAF0C	50000 Hrs	4 Wire Leads	Plastic	CE cURus TUV	0.18 A	0.034 lb	15.42 g	12 VDC	70 °C	70 °C	-10 °C	-10 °C	Frameless Motorized Impellers	Ball	49 mm	Locked Rotor Protection PWM Control Speed Sensor (Tach)	28.5 dB(A)	2.16 W	10.8 mm	Plastic	0.171 in H2O	42.6 Pa	5000 RPM	5 VDC	12.5 VDC	4.3 CFM	0.12 m³/min

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Motorized Impellers, Frameless 12VDC Round - 49mm Dia Ball 4.3 CFM (0.120m³/min) 4 Wire Leads
