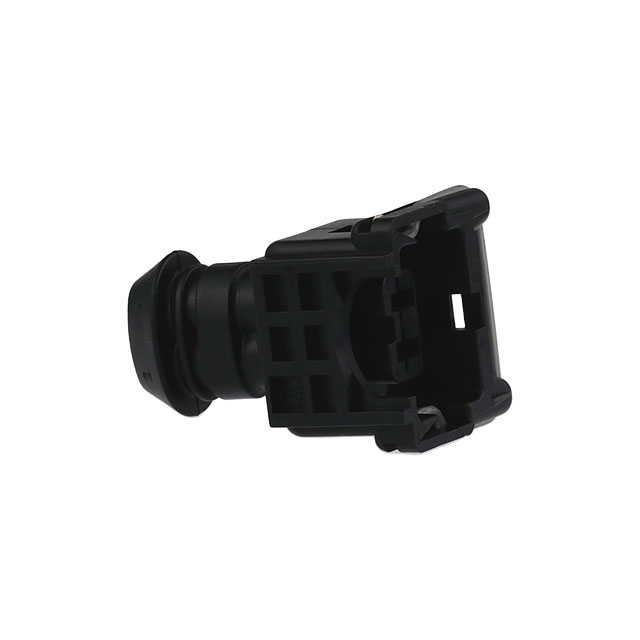

963040-3

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 2POS 5.00MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 2POS 5.00MM

Technical Specifications

Parameters and characteristics for this part

Specification	963040-3

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Features	Sealed
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	2
Number of Rows	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	5 mm
Pitch [x]	0.197 in

CONN RCPT HSG 2POS 5.00MM

Part	Number of Positions	Pitch [x]	Pitch [x]	Mounting Type	Connector Type	Features	Color	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Number of Rows	Insulation Material	Note	Contact Termination
TE Connectivity AMP Connectors 963040-3	2	5 mm	0.197 in	Free Hanging (In-Line)	Receptacle	Sealed	Black	100 °C	-40 °C	Female Socket	1	Polybutylene Terephthalate (PBT), Glass Filled	Contacts Not Included	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Rectangular Connectors - Housings Receptacle Black 0.197" (5.00mm)
