1-794953-8

Active

TE Connectivity AMP Connectors

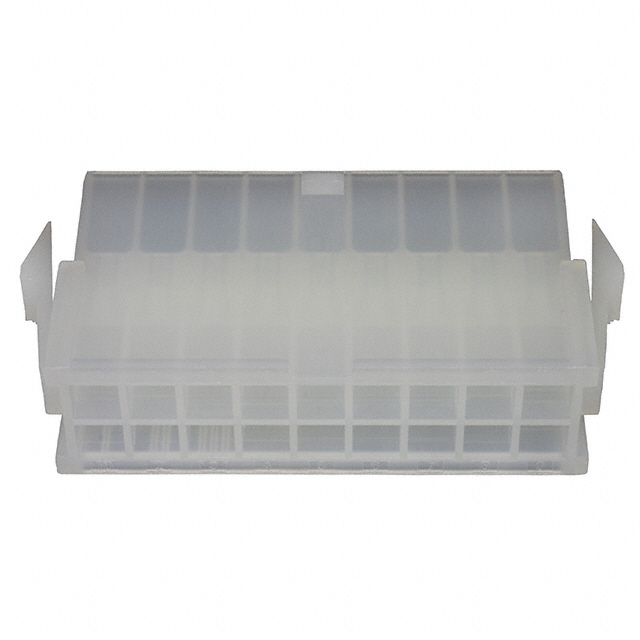

CONN PLUG HSG 18POS 4.20MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1-794953-8

Active

TE Connectivity AMP Connectors

CONN PLUG HSG 18POS 4.20MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-794953-8	794953 Series

Color	Natural	Natural
Connector Type	Plug	Plug
Contact Termination	Crimp	Crimp
Contact Type	Male Pin	Male Pin
Fastening Type	Locking Ramp	Locking Ramp
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Note	Contacts Not Included	Contacts Not Included
Number of Positions	18	2 - 22 positions
Number of Positions	-	16
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	4.2 mm	4.2 mm
Pitch [x]	0.165 in	0.165 in
Row Spacing	4.2 mm	4.2 mm
Row Spacing	0.165 in	0.165 in

794953 Series

CONN PLUG HSG 22POS 4.20MM

Part	Number of Positions	Insulation Material	Fastening Type	Row Spacing	Row Spacing	Mounting Type	Note	Contact Type	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Pitch [x]	Pitch [x]	Contact Termination	Color	Number of Positions
TE Connectivity AMP Connectors 2-794953-2	22 positions	Nylon, Polyamide (PA)	Locking Ramp	4.2 mm	0.165 in	Panel Mount, Snap-In	Contacts Not Included	Male Pin	2	-40 °C	105 ░C	Plug	4.2 mm	0.165 in	Crimp	Natural
TE Connectivity AMP Connectors 1-794953-6		Nylon, Polyamide (PA)	Locking Ramp	4.2 mm	0.165 in	Panel Mount, Snap-In	Contacts Not Included	Male Pin	2	-40 °C	105 ░C	Plug	4.2 mm	0.165 in	Crimp	Natural	16
TE Connectivity AMP Connectors 794953-4	4	Nylon, Polyamide (PA)	Locking Ramp	4.2 mm	0.165 in	Panel Mount, Snap-In	Contacts Not Included	Male Pin	2	-40 °C	105 ░C	Plug	4.2 mm	0.165 in	Crimp	Natural
TE Connectivity AMP Connectors 1-794953-8	18	Nylon, Polyamide (PA)	Locking Ramp	4.2 mm	0.165 in	Panel Mount, Snap-In	Contacts Not Included	Male Pin	2	-40 °C	105 ░C	Plug	4.2 mm	0.165 in	Crimp	Natural
TE Connectivity AMP Connectors 2-794953-0	20	Nylon, Polyamide (PA)	Locking Ramp	4.2 mm	0.165 in	Panel Mount, Snap-In	Contacts Not Included	Male Pin	2	-40 °C	105 ░C	Plug	4.2 mm	0.165 in	Crimp	Natural
TE Connectivity AMP Connectors 794953-2	2	Nylon, Polyamide (PA)		4.2 mm	0.165 in	Panel Mount, Snap-In	Contacts Not Included	Male Pin	2	-40 °C	105 ░C	Plug			Crimp	Natural
TE Connectivity AMP Connectors 794953-8	8	Nylon, Polyamide (PA)	Locking Ramp	4.2 mm	0.165 in	Panel Mount, Snap-In	Contacts Not Included	Male Pin	2	-40 °C	105 ░C	Plug	4.2 mm	0.165 in	Crimp	Natural
TE Connectivity AMP Connectors 1-794953-4	14	Nylon, Polyamide (PA)	Locking Ramp	4.2 mm	0.165 in	Panel Mount, Snap-In	Contacts Not Included	Male Pin	2	-40 °C	105 ░C	Plug	4.2 mm	0.165 in	Crimp	Natural

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.30
		10	$ 0.26
		500	$ 0.18
		1000	$ 0.17
		5000	$ 0.15
		10000	$ 0.13

Description

General part information

794953 Series

18 Rectangular Connectors - Housings Plug Natural 0.165" (4.20mm)
