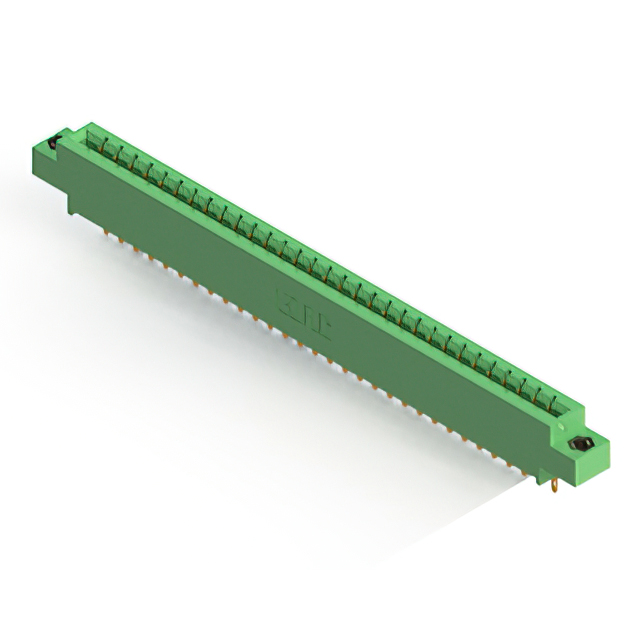

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 31 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
333-031-500-607
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 31 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 333-031-500-607 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | M3, Threaded Insert, Top Mount Opening |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 31 |
| Number of Positions/Bay/Row [custom] | 31 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Solder Eyelet(s) |
| Termination Rows | 1 |
333-031 Series
| Part | Number of Positions | Contact Type | Number of Rows | Pitch [x] | Pitch [x] | Card Type | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Read Out | Number of Positions/Bay/Row [custom] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Mounting Type | Contact Material | Material - Insulation | Contact Finish Thickness | Contact Finish Thickness | Termination | Color | Gender | Termination Rows | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 31 | Cantilever | 1 | 0.156 in | 3.96 mm | Non Specified - Single Edge | Gold | -40 °C | 105 ░C | Single | 31 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Copper Alloy | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Solder | Green | Female | 1 | 4-40 Flush Mount Threaded Insert Top Opening | ||||
EDAC Inc. | 31 | Cantilever | 1 | 0.156 in | 3.96 mm | Non Specified - Single Edge | Gold | -40 °C | 105 ░C | Single | 31 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Copper Alloy | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Solder | Green | Female | 1 | Flush Mount Side Opening Unthreaded | 3.25 mm | 0.128 " | ||
EDAC Inc. | 31 | Cantilever | 1 | 0.156 in | 3.96 mm | Non Specified - Single Edge | Gold | -40 °C | 105 ░C | Single | 31 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Copper Alloy | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Solder | Green | Female | 1 | Top Mount Opening Unthreaded | 3.96 mm | 0.156 in | ||
EDAC Inc. | 31 | Cantilever | 1 | 0.156 in | 3.96 mm | Non Specified - Single Edge | Gold | -40 °C | 105 ░C | Single | 31 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Copper Alloy | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Solder Eyelet(s) | Green | Female | 1 | M3 Threaded Insert Top Mount Opening | ||||
EDAC Inc. | 31 | Cantilever | 1 | 0.156 in | 3.96 mm | Non Specified - Single Edge | Gold | -40 °C | 105 ░C | Single | 31 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Copper Alloy | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Solder | Green | Female | 1 | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | ||
EDAC Inc. | 31 | Cantilever | 1 | 0.156 in | 3.96 mm | Non Specified - Single Edge | Gold | -40 °C | 105 ░C | Single | 31 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Copper Alloy | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Solder | Green | Female | 1 | M3 Threaded Insert Top Mount Opening | ||||
EDAC Inc. | 31 | Cantilever | 1 | 0.156 in | 3.96 mm | Non Specified - Single Edge | Gold | -40 °C | 105 ░C | Single | 31 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Copper Alloy | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Solder | Green | Female | 1 | 4-40 Threaded Insert Top Mount Opening | ||||
EDAC Inc. | 31 | Cantilever | 1 | 0.156 in | 3.96 mm | Non Specified - Single Edge | Gold | -40 °C | 105 ░C | Single | 31 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Copper Alloy | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Wire Wrap | Green | Female | 1 | M3 Threaded Insert Top Mount Opening | ||||
EDAC Inc. | 31 | Cantilever | 1 | 0.156 in | 3.96 mm | Non Specified - Single Edge | Gold | -40 °C | 105 ░C | Single | 31 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Copper Alloy | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Solder | Green | Female | 1 | Top Mount Opening Unthreaded | 3.96 mm | 0.156 in | ||
EDAC Inc. | 31 | Cantilever | 1 | 0.156 in | 3.96 mm | Non Specified - Single Edge | Gold | -40 °C | 105 ░C | Single | 31 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Copper Alloy | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Wire Wrap | Green | Female | 1 | Flush Mount Side Opening Unthreaded | 3.25 mm | 0.128 " |
