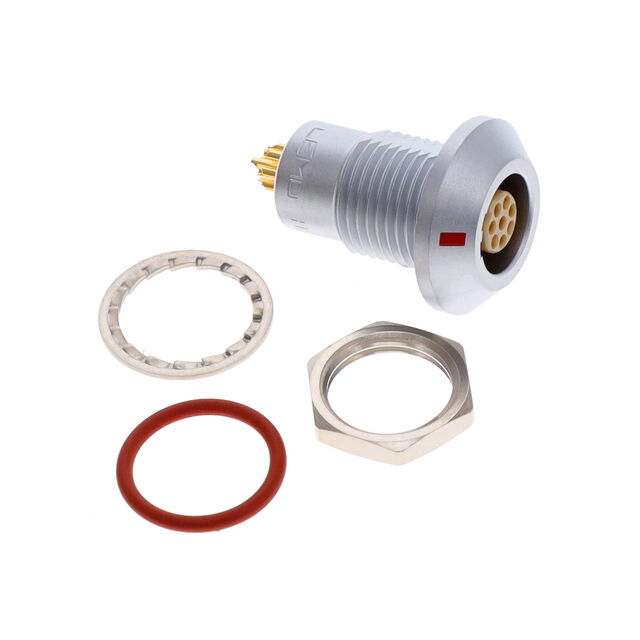

HGA.1B.308.CLLP

Active

LEMO

CONN RCPT FMALE 8P GOLD SLDR CUP

Search across all available documentation for this part.

Active

LEMO

CONN RCPT FMALE 8P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	HGA.1B.308.CLLP

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	59 Áin
Contact Finish Thickness - Mating	1.5 Ám
Contact Material	Bronze
Current Rating (Amps)	5 A
Fastening Type	Push-Pull
Features	Potted
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	8
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-20 C
Orientation	A
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	308
Shielding	Shielded

CONN RCPT FMALE 8P GOLD SLDR CUP

Part	Shell Size - Insert	Contact Material	Shielding	Current Rating (Amps)	Orientation	Contact Finish - Mating	Insert Material	Features	Material Flammability Rating	Primary Material	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Mounting Feature	Color	Connector Type	Shell Material	Shell Finish	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
LEMO HGA.1B.308.CLLP	308	Bronze	Shielded	5 A	A	Gold	Polyetheretherketone (PEEK)	Potted	UL94 V-0	Metal	IP68 - Dust Tight, Waterproof	100 °C	-20 C	Push-Pull	Bulkhead - Rear Side Nut	Silver	Receptacle, Female Sockets	Brass	Chrome	8	59 Áin	1.5 Ám

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Circular Connector Receptacle, Female Sockets Solder Cup
