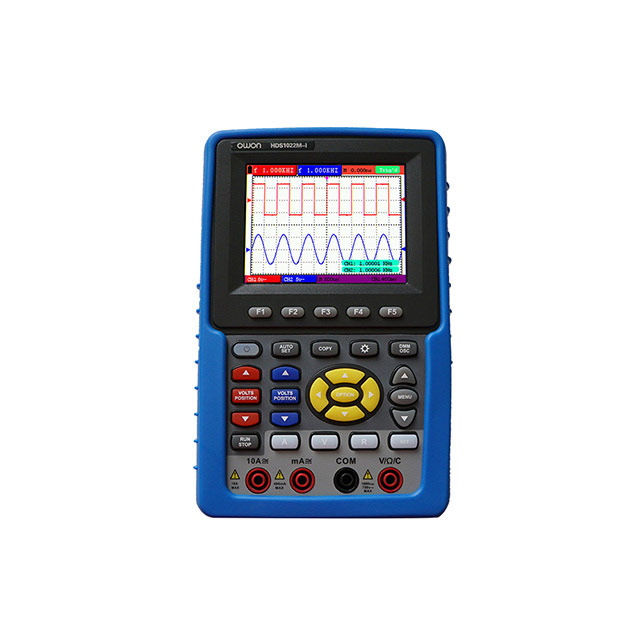

HDS1022M-I

Active

Owon Technology Lilliput Electronics (USA) Inc

O-SCOPE 20MHZ 2 CH 100MS/S

Search across all available documentation for this part.

Active

Owon Technology Lilliput Electronics (USA) Inc

O-SCOPE 20MHZ 2 CH 100MS/S

Technical Specifications

Parameters and characteristics for this part

Specification	HDS1022M-I

Channels	2
Display Type	LCD - Color
Function	Record
Includes	Adapter, Probe, Manual, USB Cable, Test Lead, Power Cord
Input Impedance	1 M, 15 pF
Interface	USB
Memory Size	6 K Words
Probe Type	Passive 10:1 (2)
Rise Time (Typ)	17.5 ns
Sampling Rate (Per Second)	100M
Type	Handheld
Voltage - Input (Max) [Max]	400 V
Voltage - Supply [Max]	240 VAC
Voltage - Supply [Min]	100 VAC

Part	Sampling Rate (Per Second)	Type	Input Impedance	Channels	Voltage - Supply [Min]	Voltage - Supply [Max]	Rise Time (Typ)	Display Type	Memory Size	Probe Type	Interface	Voltage - Input (Max) [Max]	Includes	Function
Owon Technology Lilliput Electronics (USA) Inc HDS1022M-I	100M	Handheld	1 M 15 pF	2	100 VAC	240 VAC	17.5 ns	LCD - Color	6 K Words	Passive 10:1 (2)	USB	400 V	Adapter Manual Power Cord Probe Test Lead USB Cable	Record

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 699.00

General part information

20 MHz Handheld Oscilloscopes USB Interface LCD - Color Display 2 Channel CAT II 400V Record

Technical documentation and resources

No documents available
