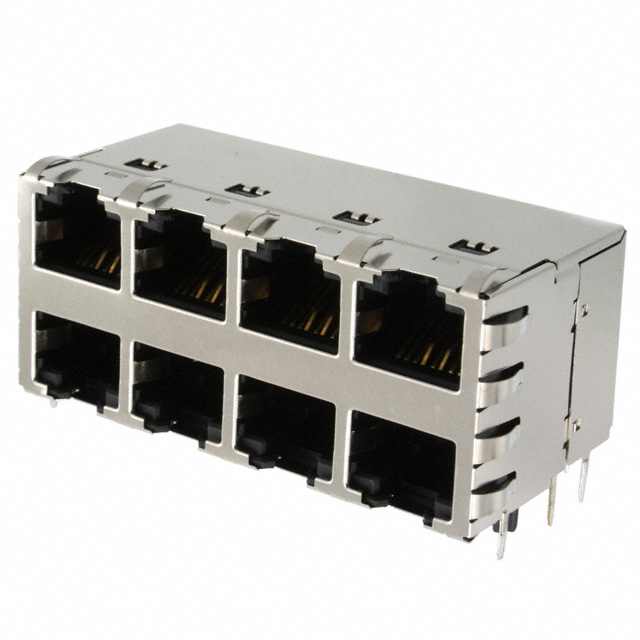

SS-73100-073 - SS-73100-073

SS-73100-073

Active
BEL MAGNETIC SOLUTIONS

CONN MOD JACK 8P8C R/A SHIELDED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsProduct Change Notice ENSelection Guide EN+1
SS-73100-073 - SS-73100-073

SS-73100-073

Active
BEL MAGNETIC SOLUTIONS

CONN MOD JACK 8P8C R/A SHIELDED

Deep-Dive with AI

DocumentsProduct Change Notice ENSelection Guide EN+1

Technical Specifications

Parameters and characteristics for this part

SpecificationSS-73100-073
Connector TypeJack
Contact FinishGold
Contact Finish Thickness50 µin
Contact Finish Thickness1.27 µm
Contact MaterialCopper Alloy
FeaturesBoard Guide
Housing MaterialThermoplastic
LED ColorDoes Not Contain LED
Mounting TypeThrough Hole
Number of Ports8
Number of Positions/Contacts8p8c (RJ45, Ethernet)
Number of Rows2
Operating Temperature [Max]85 °C
Operating Temperature [Min]-40 °C
Orientation90 °
RatingsCat5e
ShieldingShielded, EMI Finger
Tab DirectionUp and Down
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 15.25
10$ 11.73
25$ 10.60
40$ 10.08
80$ 9.37
230$ 8.41
440$ 7.89
945$ 7.34
NewarkEach 50$ 13.59
100$ 13.05
250$ 11.62
500$ 11.20
1000$ 9.71

Description

General part information

SS-73100 Series

Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded, EMI Finger Cat5e
