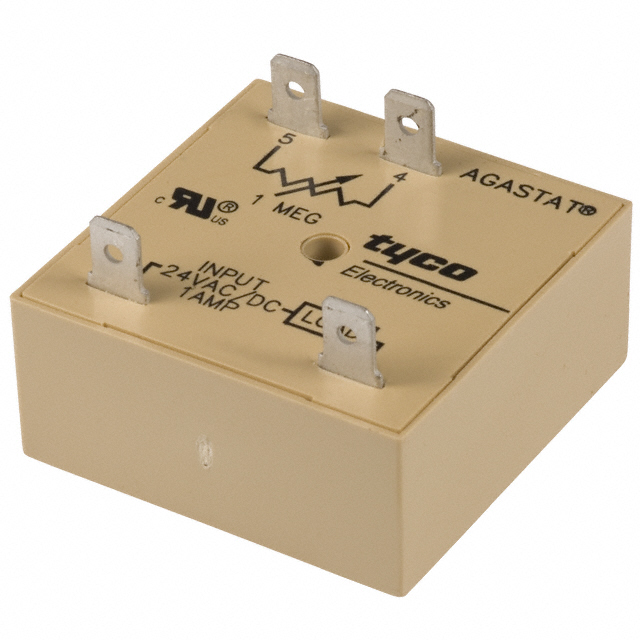

VTM1ECD

Active

TE Connectivity Aerospace, Defense and Marine

RELAY TIME DELAY 10SEC 1A 120V

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

RELAY TIME DELAY 10SEC 1A 120V

Technical Specifications

Parameters and characteristics commom to parts in this series

RELAY TIME DELAY 10SEC 1A 120V

Part	Mounting Type	Relay Type	Function	Timing Adjustment Method	Contact Rating @ Voltage	Termination Style	Voltage - Supply	Timing Initiate Method	Delay Time [Min]	Delay Time [Max]
TE Connectivity Aerospace, Defense and Marine VTM1ECD	Chassis Mount	Solid State Relay	On-Delay	External Resistor	1 A, 120 VAC	Quick Connect - 0.250" (6.3mm)	24 VAC	Input Voltage
TE Connectivity Aerospace, Defense and Marine VTM1EDD	Chassis Mount	Solid State Relay	On-Delay	External Resistor	1 A, 120 VAC	Quick Connect - 0.250" (6.3mm)	24 VAC	Input Voltage	3 Sec	60 Sec

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

On-Delay Time Delay Relay SPST-NO (1 Form A) 0.5 Sec ~ 10 Sec Delay 1A @ 120VAC Chassis Mount

Technical documentation and resources

No documents available
