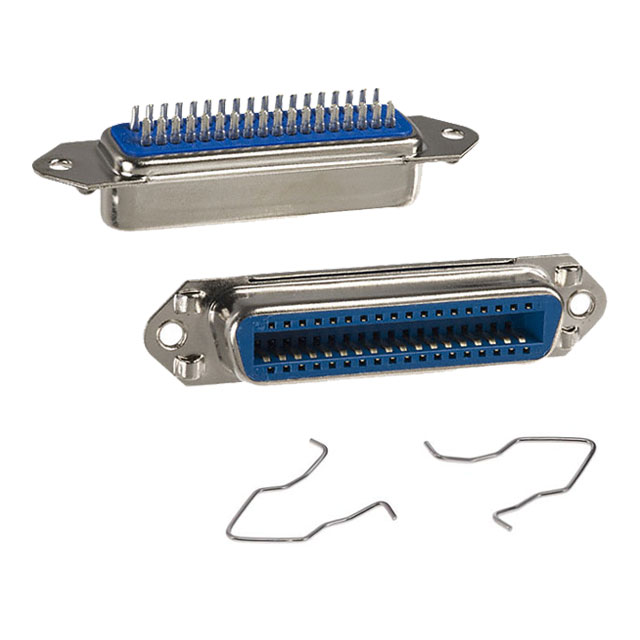

111-036-203L001

Active

I/O CONNECTOR, 36 CONTACTS, RECEPTACLE, SCSI, SOLDER, 111 SERIES, PANEL MOUNT

Active

I/O CONNECTOR, 36 CONTACTS, RECEPTACLE, SCSI, SOLDER, 111 SERIES, PANEL MOUNT

Description

General part information

36 Position Receptacle Connector SCSI Free Hanging (In-Line) Solder Cup

Parameters and characteristics for this part

Specification	111-036-203L001

Connector Style	Outer Shroud Contacts
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Flange Feature	Shell (Unthreaded), Housing
Mounting Type	Free Hanging (In-Line)
Number of Positions	36
Number of Rows	2
Termination	Solder Cup
Type	SCSI

Part	Mounting Type	Flange Feature	Contact Finish Thickness (string set options)	Contact Finish Thickness	Termination	Connector Type	Connector Style	Number of Rows	Type	Contact Finish	Number of Positions
NorComp Inc. 111-036-113L001	Through Hole	Housing Shell (Unthreaded)	Flash	Flash	Solder	Plug	Center Strip Contacts	2	SCSI	Gold	36
NorComp Inc. 111-036-103L001	Free Hanging (In-Line)	Housing Shell (Unthreaded)	Flash	Flash	Solder Cup	Plug	Center Strip Contacts	2	SCSI	Gold	36
NorComp Inc. 111-036-203L001	Free Hanging (In-Line)	Housing Shell (Unthreaded)	Flash	Flash	Solder Cup	Receptacle	Outer Shroud Contacts	2	SCSI	Gold	36
NorComp Inc. 111-036-213L001	Through Hole	Housing Shell (Unthreaded)	Flash	Flash	Solder	Receptacle	Outer Shroud Contacts	2	SCSI	Gold	36

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
