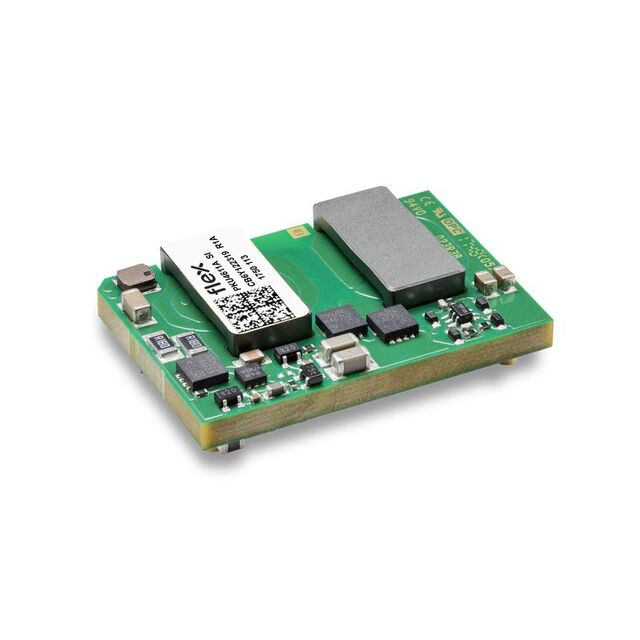

PKB4610PINB

Active

Flex Power Modules

DC DC CONVERTER 3.3V 66W

Search across all available documentation for this part.

Active

Flex Power Modules

DC DC CONVERTER 3.3V 66W

Technical Specifications

Parameters and characteristics for this part

Specification	PKB4610PINB

Applications	ITE (Commercial)
Approval Agency	CB, UL, IEC, TUV, CSA
Control Features	Active Low, Enable
Current - Output (Max) [Max]	20 A
Efficiency	91.6 %
Features	Remote On/Off, Adjustable Output, Remote Sense
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Package / Case	Eighth Brick
Size / Dimension [x]	2.3 in
Size / Dimension [x]	58.4 mm
Size / Dimension [y]	22.7 mm
Size / Dimension [y]	0.89 in
Size / Dimension [z]	8.1 mm
Size / Dimension [z]	0.32 "
Standard Number	62368-1
Supplier Device Package	Eighth Brick
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	36 V
Voltage - Isolation	2250 VDC
Voltage - Output 1	3.3 V

Part	Number of Outputs	Voltage - Input (Min) [Min]	Supplier Device Package	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Standard Number	Features	Applications	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Efficiency	Voltage - Output 1	Control Features	Mounting Type	Type	Approval Agency	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Power (Watts)
Flex Power Modules PKB4610PINB	1	36 V	Eighth Brick	75 V	20 A	62368-1	Adjustable Output Remote On/Off Remote Sense	ITE (Commercial)	2.3 in	8.1 mm	22.7 mm	0.89 in	0.32 "	58.4 mm	91.6 %	3.3 V	Active Low Enable	Through Hole	Isolated Module	CB CSA IEC TUV UL	2250 VDC	-40 °C	120 °C	Eighth Brick
Flex Power Modules PKB4619PINB	1	36 V	Eighth Brick	75 V	25 A	62368-1	Adjustable Output Remote On/Off Remote Sense	ITE (Commercial)	2.3 in	8.1 mm	22.7 mm	0.89 in	0.32 "	58.4 mm	90 %	2.5 V	Active Low Enable	Through Hole	Isolated Module	CB CSA IEC TUV UL	2250 VDC	-40 °C	120 °C	Eighth Brick	63 W
Flex Power Modules PKB4610SINB	1	36 V	Eighth Brick	75 V	20 A	62368-1	Adjustable Output Remote On/Off Remote Sense	ITE (Commercial)	2.3 in	8.4 mm	22.7 mm	0.89 in	0.33 in	58.4 mm	91.5 %	3.3 V	Active Low Enable	Surface Mount	Isolated Module	CB CSA IEC TUV UL	2250 VDC	-40 °C	120 °C	Eighth Brick

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 3.3V 20A 36V - 75V Input
