SBR-70-G-R75-JK200

Active

Luminus Devices Inc.

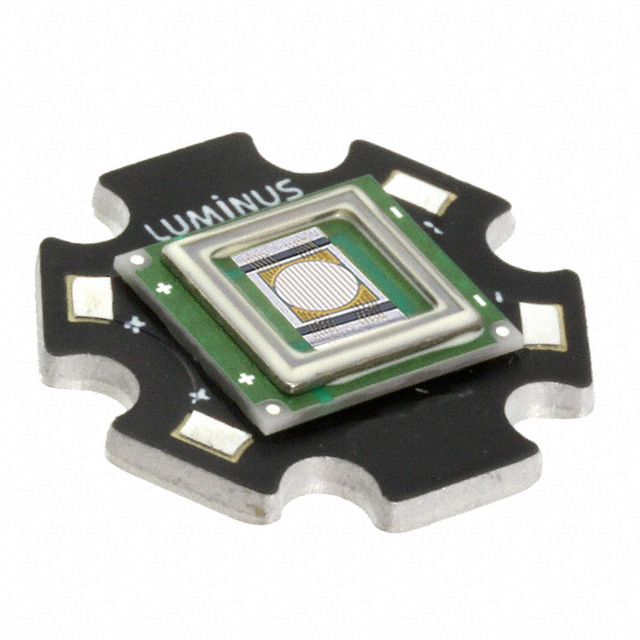

LED MOD SBR-70 GREEN STARBOARD

Search across all available documentation for this part.

Active

Luminus Devices Inc.

LED MOD SBR-70 GREEN STARBOARD

Technical Specifications

Parameters and characteristics for this part

Specification	SBR-70-G-R75-JK200

Color	Green
Configuration	Starboard
Current - Max [Max]	14 A
Current - Test	10.5 A
Height [z]	3.44 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	3 mm
Lumens/Watt @ Current - Test	44 lm/W
Luminous Flux @ Current/Temperature	2100 lm
Size / Dimension [diameter]	19.9 mm
Type	LED Module
Voltage - Forward (Vf) (Typ)	4.5 V
Wavelength	530 nm

Part	Type	Current - Max [Max]	Light Emitting Surface (LES) [diameter]	Height [z]	Voltage - Forward (Vf) (Typ)	Size / Dimension [diameter]	Luminous Flux @ Current/Temperature	Color	Lens Type	Lumens/Watt @ Current - Test	Current - Test	Wavelength	Configuration	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature [Min]	Light Emitting Surface (LES) [x]	Light Emitting Surface (LES) [y]	CCT (K) [Max]	CCT (K) [Min]
Luminus Devices Inc. SBR-70-B-R75-KF301	LED Module	10.5 A	3 mm	3.44 mm	3.8 V	19.9 mm	200 lm	Blue	Flat	5 lm/W	10.5 A	445 nm	Starboard
Luminus Devices Inc. SBR-70-G-R75-JK200	LED Module	14 A	3 mm	3.44 mm	4.5 V	19.9 mm	2100 lm	Green	Flat	44 lm/W	10.5 A	530 nm	Starboard
Luminus Devices Inc. SBR-70-G-R75-JK201	LED Module	14 A	3 mm	3.44 mm	4.5 V	19.9 mm	2100 lm	Green	Flat	44 lm/W	10.5 A	530 nm	Starboard
Luminus Devices Inc. SBR-70-WCS-R75-NB121	LED Module	10.5 A		3.44 mm	3.7 V	19.9 mm	1770 lm	Cool White	Flat	46 lm/W	10.5 A		Starboard	1830 lm	1710 lm	11 mm	10 mm	8500 K	6020 K

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	50	$ 58.75

General part information

LED Lighting COBs Engines Modules LED Module SBR-70 Green Starboard
