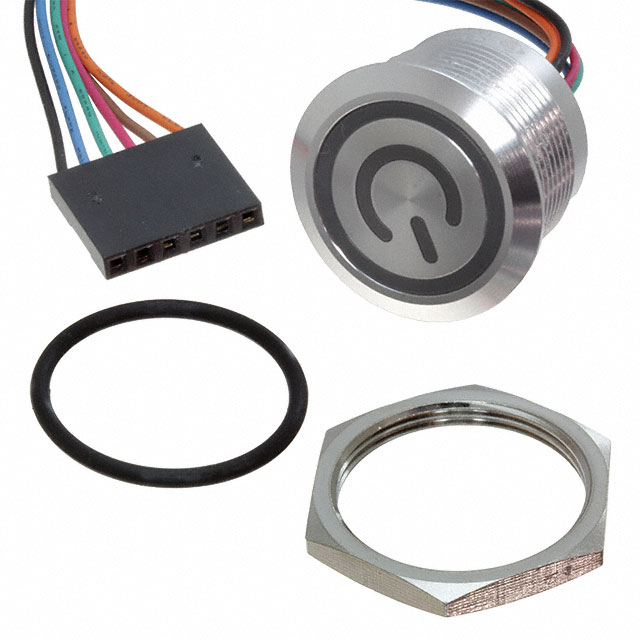

Specification	CS7L2FP

Actuator Marking	No Marking, Power Symbol
Actuator Type	Round, Flush, Button
Circuit	SPST, SPST-NO
Color	Blue, Red, Green
Color - Actuator/Cap	Silver
Current Rating	1 A
Electrical Life (Cycles)	50000000 Cycles
Illumination Type	LED
Ingress Protection Description	Dust Tight, Waterproof
Ingress Protection IP Rating	IP68
Mounting Type	Front, Panel Mount
Operating Temperature (Max)	85 °C, 65 °C
Operating Temperature (Min)	-40 °C, -20 °C
Panel Cutout Diameter	22.2 mm
Panel Cutout Shape	Circular
Switch Function	Off-On
Termination Style	Wire Leads with Connector
Type	Capacitive, Illuminated, Anti-Vandal
Voltage Rating - DC	24 V

CS7L2 Series

Part	Actuator Marking	Ingress Protection IP Rating	Ingress Protection Description	Operating Temperature (Min)	Operating Temperature (Max)	Circuit	Electrical Life (Cycles)	Illumination Type	Color	Current Rating	Voltage Rating - DC	Switch Function	Panel Cutout Diameter	Panel Cutout Shape	Actuator Type	Type	Color - Actuator/Cap	Mounting Type	Termination Style
E-Switch CS7L2FP	No Marking Power Symbol	IP68	Dust Tight Waterproof	-40 °C -20 °C	65 °C 85 °C	SPST SPST-NO	50000000 Cycles	LED	Blue Green Red	1 A	24 V	Off-On	22.2 mm	Circular	Button Flush Round	Anti-Vandal Capacitive Illuminated	Silver	Front Panel Mount	Wire Leads with Connector
