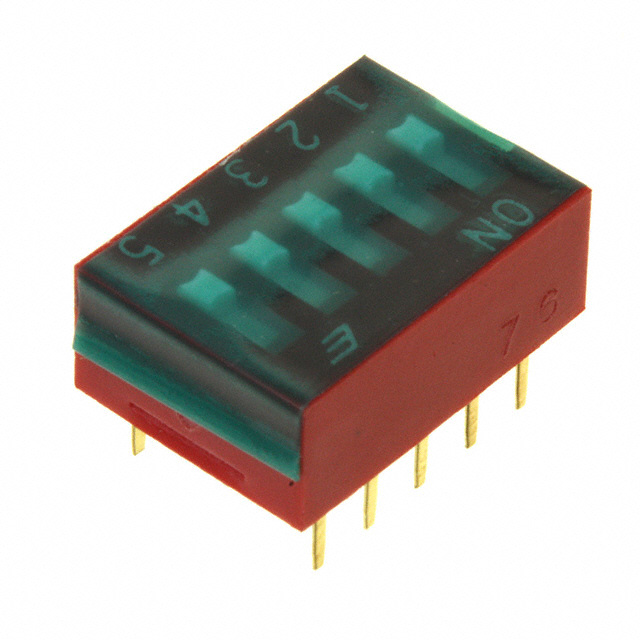

KAS1105RT

Active

E-Switch

SWITCH SLIDE DIP SPST 0.025A 24V

Search across all available documentation for this part.

Active

E-Switch

SWITCH SLIDE DIP SPST 0.025A 24V

Technical Specifications

Parameters and characteristics for this part

Specification	KAS1105RT

Actuator Level	Flush, Recessed
Actuator Type	Slide (Standard)
Body Material	Polybutylene Terephthalate (PBT), Glass Filled
Circuit	SPST
Contact Finish	Gold
Contact Material	Phosphor Bronze
Current Rating (Amps)	25 mA
Electrical Life	2000 Steps
Features	Tape Seal
Height Above Board	6 mm
Height Above Board	0.236 in
Length	0.554 "
Length	14.06 mm
Mechanical Life	2000 Cycles
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	PC Pin
Voltage Rating	24 VDC
Washable	True

Part	Mechanical Life	Contact Material	Mounting Type	Circuit	Contact Finish	Length	Length	Features	Current Rating (Amps)	Pitch [x]	Pitch	Pitch [x]	Voltage Rating	Washable	Height Above Board	Height Above Board	Electrical Life	Termination Style	Body Material	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Level
E-Switch KAS1105RT	2000 Cycles	Phosphor Bronze	Through Hole	SPST	Gold	0.554 "	14.06 mm	Tape Seal	25 mA	0.1 in	Full	2.54 mm	24 VDC		6 mm	0.236 in	2000 Steps	PC Pin	Polybutylene Terephthalate (PBT) Glass Filled	Slide (Standard)	85 °C	-40 °C	Flush Recessed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1024	$ 1.05

General part information

Dip Switch SPST 5 Position Through Hole Slide (Standard) Actuator 25mA 24VDC
