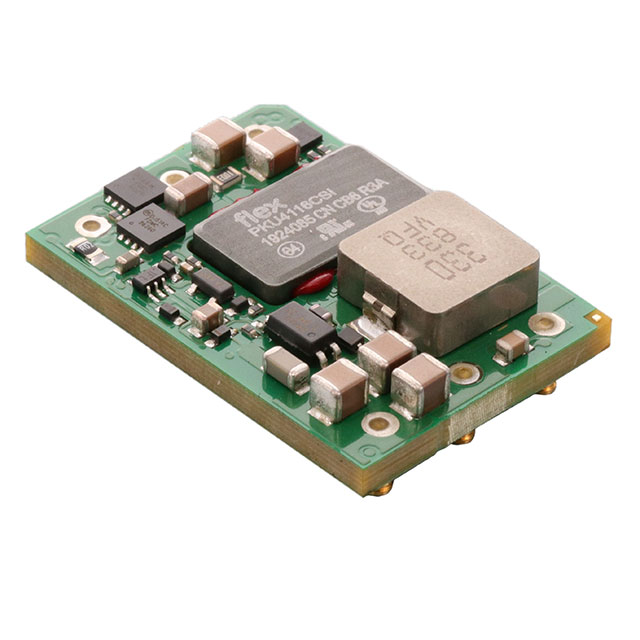

PKU4116CSI

Active

Flex Power Modules

DC DC CONVERTER 30V 99W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PKU4116CSI

Active

Flex Power Modules

DC DC CONVERTER 30V 99W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PKU4116CSI

Applications	ITE (Commercial)
Approval Agency	CB, UL, IEC, TUV, CSA
Control Features	Active Low, Enable
Current - Output (Max) [Max]	3.3 A
Features	Remote On/Off, Adjustable Output
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Sixteenth Brick
Power (Watts)	99 W
Size / Dimension [x]	1.3 "
Size / Dimension [x]	33 mm
Size / Dimension [y]	0.9 "
Size / Dimension [y]	22.9 mm
Size / Dimension [z]	0.38 in
Size / Dimension [z]	9.6 mm
Standard Number	62368-1
Supplier Device Package	Sixteenth Brick
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	36 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	30 V

PKU411 Series

Part	Package / Case	Current - Output (Max) [Max]	Power (Watts)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Number of Outputs	Control Features	Mounting Type	Applications	Voltage - Input (Max) [Max]	Voltage - Output 1	Supplier Device Package	Voltage - Isolation	Approval Agency	Type	Voltage - Input (Min) [Min]	Standard Number	Operating Temperature [Max]	Operating Temperature [Min]	Features	Efficiency	Current - Output (Max)
Flex Power Modules PKU4116CSI	Sixteenth Brick	3.3 A	99 W	1.3 "	33 mm	0.9 "	0.38 in	22.9 mm	9.6 mm	1	Active Low Enable	Surface Mount	ITE (Commercial)	75 V	30 V	Sixteenth Brick	1.5 kV	CB CSA IEC TUV UL	Isolated Module	36 V	62368-1	125 °C	-40 °C	Adjustable Output Remote On/Off
Flex Power Modules PKU4113DPI	Sixteenth Brick	10 A	120 W	1.3 "	33 mm	0.9 "	0.44 "	22.9 mm	11.3 mm	1	Active Low Enable	Through Hole	ITE (Commercial)	75 V	12 V	Sixteenth Brick	2250 VDC	CB CSA IEC TUV UL	Intermediate Bus Converter	36 V	62368-1	125 °C	-40 °C	Adjustable Output Remote On/Off Remote Sense	94.9 %
Flex Power Modules PKU4110DPI	Sixteenth Brick		100 W	1.3 "	33 mm	0.9 "	0.44 "	22.9 mm	11.3 mm	1	Active Low Enable	Through Hole	ITE (Commercial)	75 V	3.3 V	Sixteenth Brick	2250 VDC	CB CSA IEC TUV UL	Isolated Module	36 V	62368-1	125 °C	-40 °C	Adjustable Output Remote On/Off Remote Sense	93.7 %	30.3 A
Flex Power Modules PKU4111DPI	Sixteenth Brick		135 W	1.3 "	33 mm	0.9 "	0.44 "	22.9 mm	11.3 mm	1	Active Low Enable	Through Hole	ITE (Commercial)	75 V	5 V	Sixteenth Brick	2250 VDC	CB CSA IEC TUV UL	Isolated Module	36 V	62368-1	125 °C	-40 °C	Adjustable Output Remote On/Off Remote Sense	93.6 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 35.32
		5	$ 35.05
		10	$ 34.78
		25	$ 34.23
		60	$ 32.60
		120	$ 29.89
		240	$ 29.34

Description

General part information

PKU411 Series

Isolated Module DC DC Converter 1 Output 30V 3.3A 36V - 75V Input
