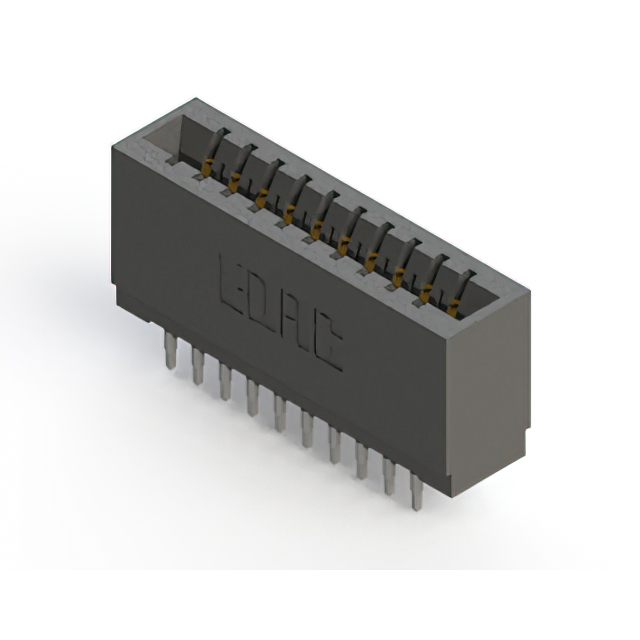

746-020-560-201
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 20POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
746-020-560-201
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 20POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 746-020-560-201 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever, Make Before Break |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 20 |
| Number of Positions/Bay/Row [custom] | 10 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Dual |
| Termination | Press-Fit |
| Termination Rows | 2 |
746-020 Series
| Part | Contact Material | Number of Rows | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Material - Insulation | Card Type | Color | Gender | Termination | Pitch [x] | Pitch [x] | Operating Temperature [Min] | Operating Temperature [Max] | Read Out | Contact Finish | Termination Rows | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Mounting Type | Number of Positions/Bay/Row [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Copper Alloy | 1 | 20 | 20 | 20 | 20 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Non Specified - Single Edge | Black | Female | Press-Fit Wire Wrap | 0.125 in | 3.18 mm | -40 °C | 105 ░C | Single | Gold | 1 | 0.76 Ám | 30 Áin | Cantilever | Through Hole | |
EDAC Inc. | Copper Alloy | 2 | 20 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Non Specified - Dual Edge | Black | Female | Press-Fit Wire Wrap | 0.125 in | 3.18 mm | -40 °C | 105 ░C | Dual | Gold | 2 | 0.76 Ám | 30 Áin | Cantilever | Through Hole | 10 | |||
EDAC Inc. | Copper Alloy | 2 | 20 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Non Specified - Dual Edge | Black | Female | Press-Fit | 0.125 in | 3.18 mm | -40 °C | 105 ░C | Dual | Gold | 2 | 0.76 Ám | 30 Áin | Cantilever | Through Hole | 10 | |||
EDAC Inc. | Copper Alloy | 2 | 20 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Non Specified - Dual Edge | Black | Female | Press-Fit | 0.125 in | 3.18 mm | -40 °C | 105 ░C | Dual | Gold | 2 | 0.76 Ám | 30 Áin | Cantilever | Through Hole | 10 | |||
EDAC Inc. | Copper Alloy | 2 | 20 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Non Specified - Dual Edge | Black | Female | Press-Fit | 0.125 in | 3.18 mm | -40 °C | 105 ░C | Dual | Gold | 2 | 0.76 Ám | 30 Áin | Cantilever | Through Hole | 10 | |||
EDAC Inc. | Copper Alloy | 2 | 20 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Non Specified - Dual Edge | Black | Female | Press-Fit | 0.125 in | 3.18 mm | -40 °C | 105 ░C | Dual | Gold | 2 | 0.76 Ám | 30 Áin | Cantilever | Through Hole | 10 | |||
EDAC Inc. | Copper Alloy | 2 | 20 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Non Specified - Dual Edge | Black | Female | Press-Fit | 0.125 in | 3.18 mm | -40 °C | 105 ░C | Dual | Gold | 2 | 0.76 Ám | 30 Áin | Cantilever | Through Hole | 10 | |||
EDAC Inc. | Copper Alloy | 2 | 20 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Non Specified - Dual Edge | Black | Female | Press-Fit | 0.125 in | 3.18 mm | -40 °C | 105 ░C | Dual | Gold | 2 | 0.76 Ám | 30 Áin | Cantilever Make Before Break | Through Hole | 10 | |||
EDAC Inc. | Copper Alloy | 2 | 20 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Non Specified - Dual Edge | Black | Female | Press-Fit Wire Wrap | 0.125 in | 3.18 mm | -40 °C | 105 ░C | Dual | Gold | 2 | 0.76 Ám | 30 Áin | Cantilever | Through Hole | 10 | |||
EDAC Inc. | Copper Alloy | 2 | 20 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Non Specified - Dual Edge | Black | Female | Press-Fit | 0.125 in | 3.18 mm | -40 °C | 105 ░C | Dual | Gold | 2 | 0.76 Ám | 30 Áin | Cantilever | Through Hole | 10 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 5.65 | |
Description
General part information
746-020 Series
20 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Black
