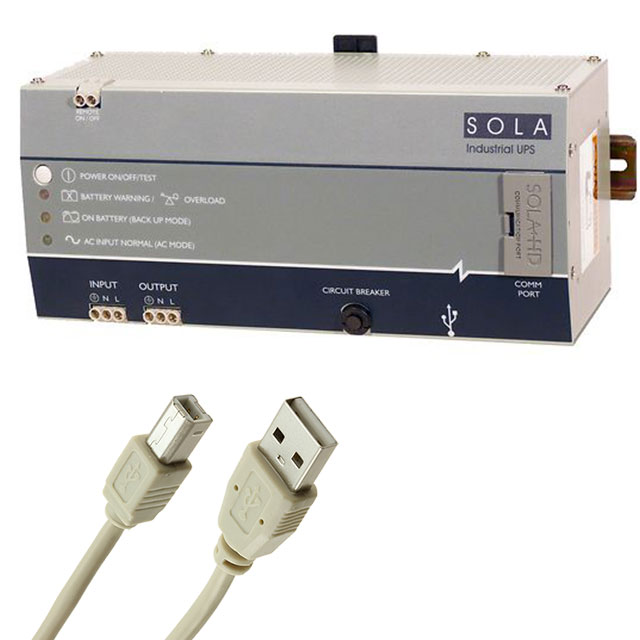

SDU850A-5

Obsolete

SolaHD

OFFLINE UPS 850VA 230V DIN A-SER

Search across all available documentation for this part.

Obsolete

SolaHD

OFFLINE UPS 850VA 230V DIN A-SER

Technical Specifications

Parameters and characteristics for this part

Specification	SDU850A-5

Applications	Industrial Control, General Purpose
Backup Time - Max Load	2 minutes
Form	Din Rail
Height	123.7 mm
Height [z]	4.87 "
Input Connector	Screw Terminals
Output Connector	Screw Terminals
Power - Rated	850 VA, 510 W
Size / Dimension [x]	4.815 in
Size / Dimension [x]	122.3 mm
Size / Dimension [y]	11.098 in
Size / Dimension [y]	281.9 mm
Type	Standby (No Regulation)
Voltage - Output	230 V

Part	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Height [z]	Height	Power - Rated	Form	Backup Time - Max Load	Applications	Voltage - Output	Input Connector	Output Connector
SolaHD SDU850A-5	Standby (No Regulation)	4.815 in	11.098 in	281.9 mm	122.3 mm	4.87 "	123.7 mm	510 W 850 VA	Din Rail	2 minutes	General Purpose Industrial Control	230 V	Screw Terminals	Screw Terminals

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

OFFLINE UPS 850VA 230V DIN A-SER

Technical documentation and resources

No documents available
