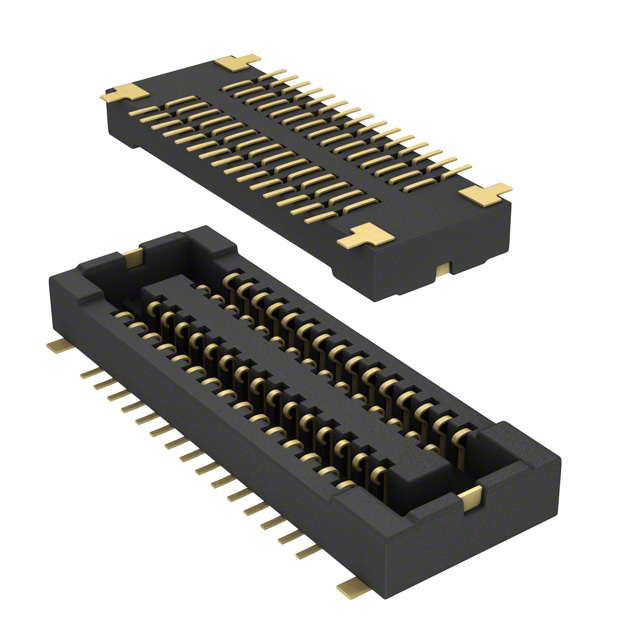

AXT530124 - F4S Socket Series 30POS

AXT530124

Active
Panasonic Electric Works

CONN SOCKET 30POS SMD GOLD

Deep-Dive with AI

DocumentsHow to Read Date CodesConnectors SMD-Technical Info

Technical Specifications

Parameters and characteristics for this part

SpecificationAXT530124
Connector TypeSocket, Outer Shroud Contacts
Contact FinishGold
FeaturesSolder Retention
Height Above Board0.97 mm
Height Above Board0.038 in
Mated Stacking Heights1 mm
Mounting TypeSurface Mount
Number of Positions30
Number of Rows2
Pitch [x]0.016 in
Pitch [x]0.4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 1.38
10$ 1.16
25$ 1.12
50$ 1.09
100$ 1.04
250$ 0.95
500$ 0.85
1000$ 0.76
Digi-Reel® 1$ 1.38
10$ 1.16
25$ 1.12
50$ 1.09
100$ 1.04
250$ 0.95
500$ 0.85
1000$ 0.76
Tape & Reel (TR) 3000$ 0.69
6000$ 0.66
9000$ 0.63
15000$ 0.62

Description

General part information

AXT530 Series

30 Position Connector Socket, Outer Shroud Contacts Surface Mount Gold
