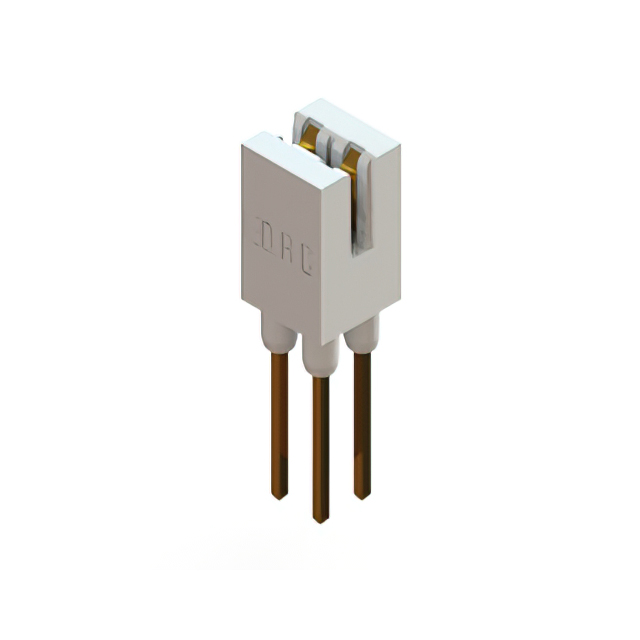

243-004-542-201

Active

EDAC Inc.

CONN EDGE DUAL FMALE 4POS 0.200

Search across all available documentation for this part.

Active

EDAC Inc.

CONN EDGE DUAL FMALE 4POS 0.200

Technical Specifications

Parameters and characteristics for this part

Specification	243-004-542-201

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	White
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Type	Cantilever
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	4
Number of Positions/Bay/Row [custom]	2
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Read Out	Dual
Termination	Solder Eyelet(s)

CONN EDGE DUAL FMALE 4POS 0.200

Part	Color	Number of Positions	Card Type	Gender	Number of Rows	Termination	Read Out	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Finish	Number of Positions/Bay/Row [custom]	Material - Insulation	Contact Material	Contact Type	Pitch [x]	Pitch [x]
EDAC Inc. 243-004-542-201	White	4	Non Specified - Dual Edge	Female	2	Solder Eyelet(s)	Dual	-40 °C	105 ░C	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	2	Polyester Thermoplastic	Copper Alloy	Cantilever	0.2 in	5.08 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 14.06

General part information

4 Position Female Connector Non Specified - Dual Edge Gold 0.200" (5.08mm) White
