CDLB-1-2701-9920-I

Active

Visual Communications Company - VCC

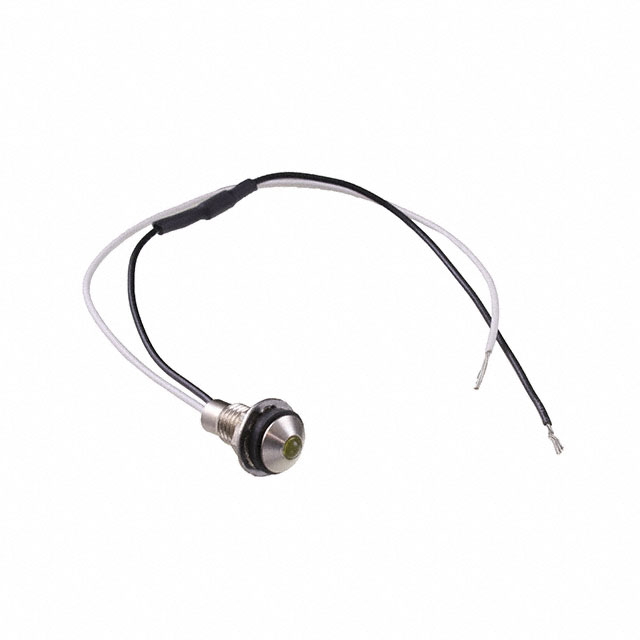

LONG BODY PMI RND .230" LED 120V

Search across all available documentation for this part.

Active

Visual Communications Company - VCC

LONG BODY PMI RND .230" LED 120V

Technical Specifications

Parameters and characteristics for this part

Specification	CDLB-1-2701-9920-I

Ingress Protection	IP67
Lens Color	Yellow
Lens Style	Round with Domed Top
Millicandela Rating	219 mcd
Panel Cutout Dimensions [diameter]	0.24 in
Panel Cutout Dimensions [diameter]	6 mm
Panel Cutout Shape	Round
Ratings	AC
Type	LED
Viewing Angle	60 °
Voltage	120 V
Wavelength - Peak	590 nm

Part	Panel Cutout Shape	Voltage	Ratings	Ingress Protection	Type	Viewing Angle	Wavelength - Peak	Millicandela Rating	Panel Cutout Dimensions [diameter]	Panel Cutout Dimensions [diameter]	Lens Style	Lens Color
Visual Communications Company - VCC CDLB-1-2701-9920-I	Round	120 V	AC	IP67	LED	60 °	590 nm	219 mcd	0.24 in	6 mm	Round with Domed Top	Yellow
Visual Communications Company - VCC CDLB-1-2701-9908-I	Round	12 V	DC	IP67	LED	60 °	590 nm	219 mcd	0.24 in	6 mm	Round with Domed Top	Yellow

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator 60° 120V 20mA Wire Leads - 6" (152.40mm)
