PM104SH-5R2-RC

Active

Bourns Inc.

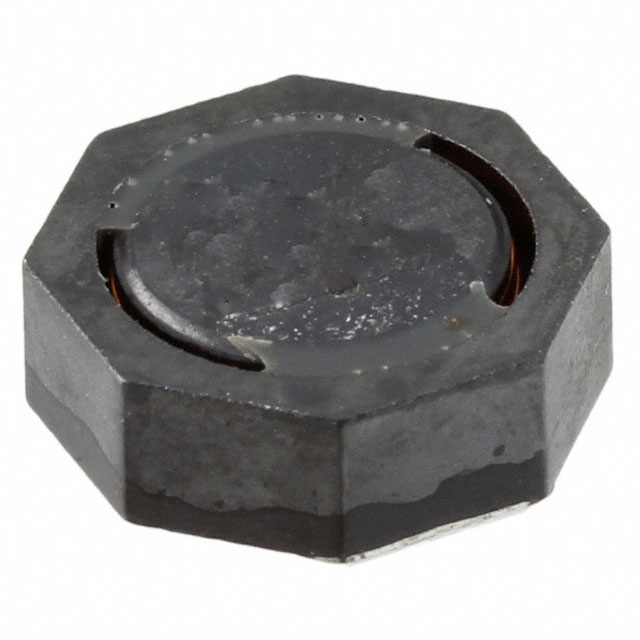

INDUCTOR POWER SHIELDED BOBBIN CORE 5.2UH 30% 100KHZ 12Q-FACTOR FERRITE 4.6A 0.022OHM DCR T/R

Search across all available documentation for this part.

Active

Bourns Inc.

INDUCTOR POWER SHIELDED BOBBIN CORE 5.2UH 30% 100KHZ 12Q-FACTOR FERRITE 4.6A 0.022OHM DCR T/R

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Material - Core	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Type	Frequency - Self Resonant	Q @ Freq	Current - Saturation (Isat)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Shielding	Inductance	Inductance Frequency - Test	DC Resistance (DCR) [Max]
Bourns Inc. PM104SH-5R2-RC	Nonstandard	Ferrite	125 °C	-40 °C	4.6 A	Drum Core Wirewound	30 MHz	7.96 MHz 12	4.8 A	10 mm	0.394 in	10 mm	0.394 "	30 %	4.1 mm	0.161 "	Surface Mount	Shielded	5.2 µH	7.96 MHz
Bourns Inc. PM104SH-7R0-RC	Nonstandard	Ferrite	125 °C	-40 °C	3.9 A	Drum Core Wirewound	36 MHz	7.96 MHz 13	4 A	10 mm	0.394 in	10 mm	0.394 "	30 %	4.1 mm	0.161 "	Surface Mount	Shielded	7 µH	7.96 MHz	35 mOhm
Bourns Inc. PM104SH-1R5-RC	Nonstandard	Ferrite	125 °C	-40 °C	7.2 A	Drum Core Wirewound	65 MHz	7.96 MHz 14	7 A	10 mm	0.394 in	10 mm	0.394 "	30 %	4.1 mm	0.161 "	Surface Mount	Shielded	1.5 µH	7.96 MHz
Bourns Inc. PM104SH-220-RC	Nonstandard	Ferrite	125 °C	-40 °C	2.2 A	Drum Core Wirewound	12 MHz	2.52 MHz 20	2.3 A	10 mm	0.394 in	10 mm	0.394 "	30 %	4.1 mm	0.161 "	Surface Mount	Shielded	22 µH	2.52 MHz	55.8 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 0.78

General part information

5.2 µH Shielded Drum Core, Wirewound Inductor 4.6 A 22mOhm Max Nonstandard
