1411176

Active

Phoenix Contact

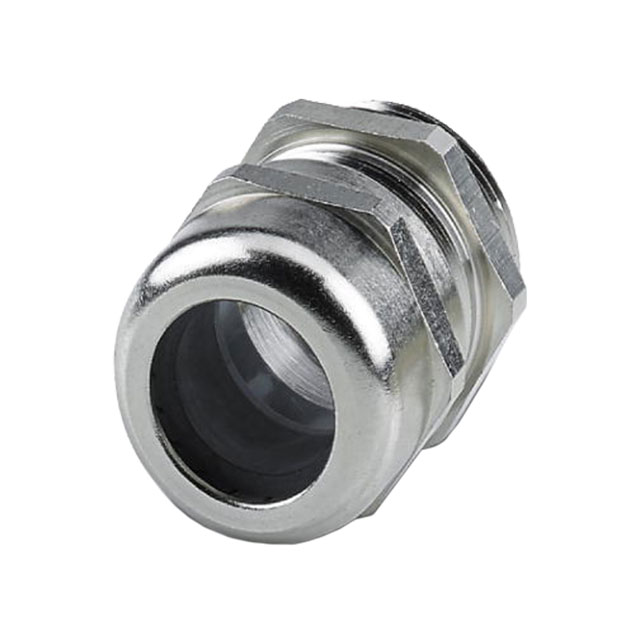

CABLE GLND 18.01-25MM PG29 BRASS

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLND 18.01-25MM PG29 BRASS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1411176	G-INS-PG29 Series

Color	Silver	Silver, Black, Gray
Includes	O-Ring, Seal	O-Ring, Seal
Ingress Protection	IP66, IP68, IP69	IP66, IP68, IP69, IP68 - Dust Tight, Waterproof
Material	Brass, Nickel Plated	Brass, Nickel Plated, Polyamide (PA), Nylon
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outside Cable Diameter (Max)	25 mm	25 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.984 in	0.984 in
Outside Cable Diameter (Min) [Min] [diameter]	0.709 in	0.709 in
Outside Cable Diameter (Min) [Min] [diameter]	18.01 mm	18.01 mm
Thread Length	8 mm	8 - 11 mm
Thread Length	0.315 in	0.315 - 0.433 in
Thread Size	PG29	PG29
Type	Cable Gland	Cable Gland

CABLE GLND 18.01-25MM PG29 BRASS

Part	Material	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max)	Includes	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Thread Length	Thread Length	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Thread Size	Type	Color
Phoenix Contact 1411176	Brass, Nickel Plated	0.984 in	25 mm	O-Ring, Seal	IP66, IP68, IP69	100 °C	-40 °C	8 mm	0.315 in	0.709 in	18.01 mm	PG29	Cable Gland	Silver
Phoenix Contact 1424501	Polyamide (PA), Nylon	0.984 in	25 mm	Seal	IP68 - Dust Tight, Waterproof	100 °C	-40 °C	11 mm	0.433 in	0.709 in	18.01 mm	PG29	Cable Gland	Black
Phoenix Contact 1424491	Polyamide (PA), Nylon	0.984 in	25 mm	Seal	IP68 - Dust Tight, Waterproof	100 °C	-40 °C	11 mm	0.433 in	0.709 in	18.01 mm	PG29	Cable Gland	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.39

General part information

Cable Gland Brass, Nickel Plated PG29 Silver
