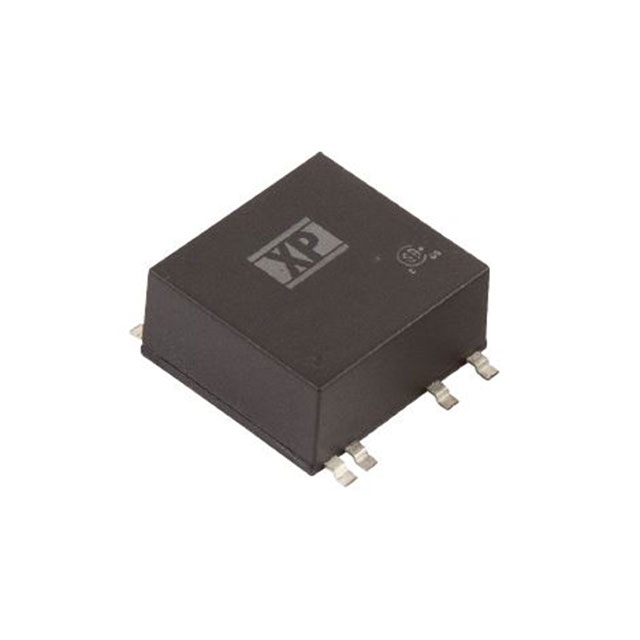

ISX0624S15

Active

XP POWER

DC DC CONVERTER 15V 6W

Search across all available documentation for this part.

Active

XP POWER

DC DC CONVERTER 15V 6W

Technical Specifications

Parameters and characteristics for this part

Part	Efficiency	Voltage - Input (Min) [Min]	Control Features	Standard Number	Number of Outputs	Applications	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Output 1	Package / Case	Package / Case	Current - Output (Max) [Max]	Type	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Isolation	Power (Watts)	Features	Voltage - Output 2
XP POWER ISX0624S15	83 %	9 V	Active High Enable	62368-1	1	ITE (Commercial)	10.16 mm	22 mm	10.1 mm	20.32 mm	0.87 "	20.3 mm	15 V	7 Leads	16-SMD Module	400 mA	Isolated Module	36 V	100 °C	-40 °C	Surface Mount	1.5 kV	6 W	OCP Remote On/Off SCP UVLO
XP POWER ISX0624S3V3	76 %	9 V	Active High Enable	62368-1	1	ITE (Commercial)	10.16 mm	22 mm	10.1 mm	20.32 mm	0.87 "	20.3 mm	3.3 V	7 Leads	16-SMD Module		Isolated Module	36 V	100 °C	-40 °C	Surface Mount	1.5 kV	6 W	OCP Remote On/Off SCP UVLO
XP POWER ISX0624D05	83 %	9 V	Active High Enable	62368-1	2	ITE (Commercial)	10.16 mm	22 mm	10.1 mm	20.32 mm	0.87 "	20.3 mm	5 V	7 Leads	16-SMD Module	600 mA	Isolated Module	36 V	100 °C	-40 °C	Surface Mount	1.5 kV	6 W	OCP Remote On/Off SCP UVLO	-5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 15V 400mA 9V - 36V Input
