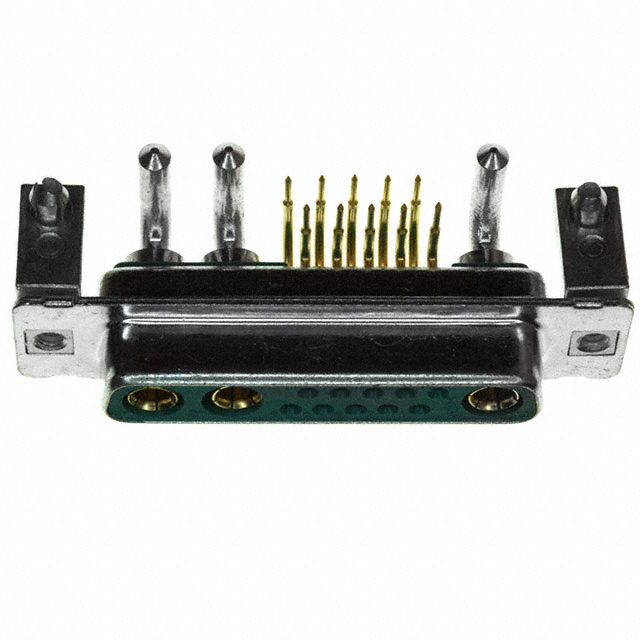

3013W3SCT56N40X

Active

Amphenol CONEC

CONN D-SUB RCPT 13POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3013W3SCT56N40X

Active

Amphenol CONEC

CONN D-SUB RCPT 13POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3013W3SCT56N40X

Backset Spacing	7.28 mm
Backset Spacing	0.287 in
Color	Green
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	5 A, 20 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions [custom]	10
Number of Positions [custom]	3
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	13W3, 13C3, B, DB
Shell Size, Connector Layout	3
Termination	Solder

3013W3S Series

Part	Contact Material	Shell Size, Connector Layout	Shell Size, Connector Layout	Current Rating (Amps)	Contact Finish Thickness	Mounting Type	Material Flammability Rating	Color	Contact Finish	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions	Connector Type	Voltage Rating	Flange Feature	Termination	Connector Style	Dielectric Material	Wire Gauge	Number of Positions [custom]	Number of Positions [custom]	Backset Spacing	Backset Spacing	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Note	Shell Finish Thickness	Shell Finish Thickness
Amphenol CONEC 3013W3SAR99F20X	Copper Alloy	13C3 13W3 B DB	3	7.5 A	Flash	Through Hole	UL94 V-0	Green	Gold	2	-55 °C	125 °C	3	10	13	Receptacle Female Sockets	250 VDC	4-40	Solder	Combo D-Sub	Polybutylene Terephthalate (PBT) Glass Filled
Amphenol CONEC 3013W3SAM99A30X	Copper Alloy	13C3 13W3 B DB	3	7.5 A	Flash	Free Hanging (In-Line)	UL94 V-0	Green	Gold	2	-55 °C	125 °C	3	10	13	Receptacle Female Sockets	250 VDC	Cable Side		Combo D-Sub	Polybutylene Terephthalate (PBT) Glass Filled	20 AWG
Amphenol CONEC 3013W3SCT56N40X	Copper Alloy	13C3 13W3 B DB	3	5 A 20 A		Board Edge Right Angle Through Hole	UL94 V-0	Green	Gold	2	-55 °C	125 °C				Receptacle Female Sockets		Housing/Shell (4-40)	Solder	Combo D-Sub	Polybutylene Terephthalate (PBT) Glass Filled		10	3	7.28 mm	0.287 in	Signal and Power	0.76 Ám	30 Áin
Amphenol CONEC 3013W3SAR71AA0X																Receptacle Female Sockets
Amphenol CONEC 3013W3SAR99A10X	Copper Alloy	13C3 13W3 B DB	3	7.5 A	Flash	Through Hole	UL94 V-0	Green	Gold	2	-55 °C	125 °C	3	10	13	Receptacle Female Sockets	250 VDC	Housing/Shell (Unthreaded)	Solder	Combo D-Sub	Polybutylene Terephthalate (PBT) Glass Filled
Amphenol CONEC 3013W3SXK99A10X		13C3 13W3 B DB	3			Free Hanging (In-Line)		Black		2	-55 °C	125 °C	3	10	13	Receptacle for Female Contacts		Housing/Shell (Unthreaded)		Combo D-Sub	Polybutylene Terephthalate (PBT) Glass Filled						Coax Power			Contacts Not Included	320 µin	8.13 µm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	25	$ 25.19

Description

General part information

3013W3S Series

13 (10 + 3 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
