EC0183-000

Active

TE Connectivity Raychem Cable Protection

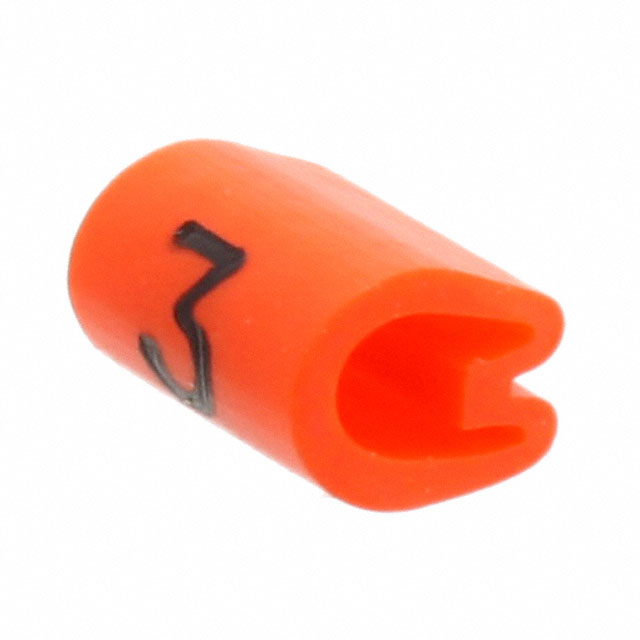

WIRE MARKER PUSH ON 4.5MM ORANGE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EC0183-000

Active

TE Connectivity Raychem Cable Protection

WIRE MARKER PUSH ON 4.5MM ORANGE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EC0183-000

Cable Diameter [diameter]	3.2 mm, 2 mm
Cable Diameter [diameter]	0.079 in, 0.126 in
Legend	3
Material	Poly-Vinyl Chloride (PVC)
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-45 °C
Size [x]	0.18 in
Size [x]	4.5 mm
Type	Wire Marker, Push On

EC01 Series

Part	Color	Material	Operating Temperature [Min]	Operating Temperature [Max]	Legend	Type	Size [x]	Size [x]	Cable Diameter [diameter]	Cable Diameter [diameter]	Cable Diameter [diameter]
TE Connectivity Raychem Cable Protection EC0103-000	Yellow	Poly-Vinyl Chloride (PVC)	-45 °C	70 °C	C	Wire Marker Push On	0.18 in	4.5 mm	0.059 in 0.079 in	2 mm	1.5 mm
TE Connectivity Raychem Cable Protection EC0100-000	Yellow	Poly-Vinyl Chloride (PVC)	-45 °C	70 °C	9	Wire Marker Push On	0.18 in	4.5 mm	0.059 in 0.079 in	2 mm	1.5 mm
TE Connectivity Raychem Cable Protection EC0155-000	White	Poly-Vinyl Chloride (PVC)	-45 °C	70 °C	K	Wire Marker Push On	0.18 in	4.5 mm	0.059 in 0.079 in	2 mm	1.5 mm
TE Connectivity Raychem Cable Protection EC0169-000	White	Poly-Vinyl Chloride (PVC)	-45 °C	70 °C		Wire Marker Push On	0.18 in	4.5 mm	0.059 in 0.079 in	2 mm	1.5 mm
TE Connectivity Raychem Cable Protection EC0190-000	Yellow	Poly-Vinyl Chloride (PVC)	-45 °C	70 °C	1	Wire Marker Push On	0.18 in	4.5 mm	0.079 in 0.126 in		2 mm 3.2 mm
TE Connectivity Raychem Cable Protection EC0114-000	Yellow	Poly-Vinyl Chloride (PVC)	-45 °C	70 °C	N	Wire Marker Push On	0.18 in	4.5 mm	0.059 in 0.079 in	2 mm	1.5 mm
TE Connectivity Raychem Cable Protection EC0106-000	Yellow	Poly-Vinyl Chloride (PVC)	-45 °C	70 °C	F	Wire Marker Push On	0.18 in	4.5 mm	0.059 in 0.079 in	2 mm	1.5 mm
TE Connectivity Raychem Cable Protection EC0136-000	White	Poly-Vinyl Chloride (PVC)	-45 °C	70 °C	1	Wire Marker Push On	0.18 in	4.5 mm	0.059 in 0.079 in	2 mm	1.5 mm
TE Connectivity Raychem Cable Protection EC0121-000	Yellow	Poly-Vinyl Chloride (PVC)	-45 °C	70 °C	U	Wire Marker Push On	0.18 in	4.5 mm	0.059 in 0.079 in	2 mm	1.5 mm
TE Connectivity Raychem Cable Protection EC0183-000		Poly-Vinyl Chloride (PVC)	-45 °C	70 °C	3	Wire Marker Push On	0.18 in	4.5 mm	0.079 in 0.126 in		2 mm 3.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.10
		10	$ 0.03
		25	$ 0.03
		50	$ 0.02
		100	$ 0.02
		250	$ 0.02
		500	$ 0.02
		1000	$ 0.01
		2500	$ 0.01

Description

General part information

EC01 Series

Wire Marker, Push On 0.18" L (4.5mm) Orange Poly-Vinyl Chloride (PVC)
