1-826631-0

Active

TE Connectivity AMP Connectors

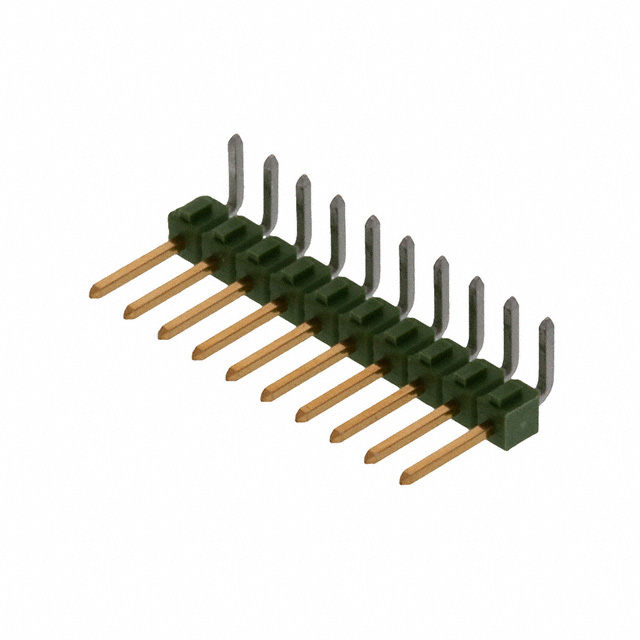

CONN HEADER R/A 10POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1-826631-0

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 10POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.13
		10	$ 0.94
		100	$ 0.77
		500	$ 0.75

Description

General part information

826631 Series

Connector Header Through Hole, Right Angle 10 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-826631-0	826631 Series

Connector Type	Breakaway, Header	Breakaway, Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	0.099 µm	0.099 µm
Contact Finish Thickness - Mating	3.9 µin	3.9 µin
Contact Finish Thickness - Post	3 µm	3 µm
Contact Finish Thickness - Post	118.1 µin	118.1 µin
Contact Length - Mating	6.7 mm	6.7 mm
Contact Length - Mating	0.264 in	0.264 in
Contact Length - Post	3.2 mm	3.2 mm
Contact Length - Post [x]	0.126 in	0.126 in
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	5 A	5 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Green	Green
Insulation Height	3.05 mm	3.05 mm
Insulation Height	0.12 in	0.12 in
Insulation Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	10	2 - 50
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

826631 Series

CONN HEADER R/A 9POS 2.54MM

Part	Contact Material	Style	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Contact Length - Mating	Contact Length - Mating	Shrouding	Contact Type	Insulation Height	Insulation Height	Contact Finish - Post	Number of Positions	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Contact Shape	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Fastening Type	Contact Length - Post	Contact Length - Post [x]	Material Flammability Rating	Insulation Color	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Mounting Type	Insulation Material
TE Connectivity AMP Connectors 826631-9	Brass	Board to Board, Cable	3 µm	118.1 µin	Breakaway, Header	6.7 mm	0.264 in	Unshrouded	Male Pin	3.05 mm	0.12 in	Tin	9	Gold	0.099 µm	3.9 µin	Solder	Square	5 A	0.1 in	2.54 mm	Push-Pull	3.2 mm	0.126 in	UL94 V-0	Green	All	-65 ░C	105 ░C	1	Through Hole, Right Angle	Polybutylene Terephthalate (PBT)
TE Connectivity AMP Connectors 826631-7	Brass	Board to Board, Cable	3 µm	118.1 µin	Breakaway, Header	6.7 mm	0.264 in	Unshrouded	Male Pin	3.05 mm	0.12 in	Tin	7	Gold	0.099 µm	3.9 µin	Solder	Square	5 A	0.1 in	2.54 mm	Push-Pull	3.2 mm	0.126 in	UL94 V-0	Green	All	-65 ░C	105 ░C	1	Through Hole, Right Angle	Polybutylene Terephthalate (PBT)
TE Connectivity AMP Connectors 826631-4	Brass	Board to Board, Cable	3 µm	118.1 µin	Breakaway, Header	6.7 mm	0.264 in	Unshrouded	Male Pin	3.05 mm	0.12 in	Tin	4	Gold	0.099 µm	3.9 µin	Solder	Square	5 A	0.1 in	2.54 mm	Push-Pull	3.2 mm	0.126 in	UL94 V-0	Green	All	-65 ░C	105 ░C	1	Through Hole, Right Angle	Polybutylene Terephthalate (PBT)
TE Connectivity AMP Connectors 1-826631-0	Brass	Board to Board, Cable	3 µm	118.1 µin	Breakaway, Header	6.7 mm	0.264 in	Unshrouded	Male Pin	3.05 mm	0.12 in	Tin	10	Gold	0.099 µm	3.9 µin	Solder	Square	5 A	0.1 in	2.54 mm	Push-Pull	3.2 mm	0.126 in	UL94 V-0	Green	All	-65 ░C	105 ░C	1	Through Hole, Right Angle	Polybutylene Terephthalate (PBT)
TE Connectivity AMP Connectors 4-826631-4	Brass	Board to Board, Cable	3 µm	118.1 µin	Breakaway, Header	6.7 mm	0.264 in	Unshrouded	Male Pin	3.05 mm	0.12 in	Tin	44	Gold	0.099 µm	3.9 µin	Solder	Square	5 A	0.1 in	2.54 mm	Push-Pull	3.2 mm	0.126 in	UL94 V-0	Green	All	-65 ░C	105 ░C	1	Through Hole, Right Angle	Polybutylene Terephthalate (PBT)
TE Connectivity AMP Connectors 1-826631-5	Brass	Board to Board, Cable	3 µm	118.1 µin	Breakaway, Header	6.7 mm	0.264 in	Unshrouded	Male Pin	3.05 mm	0.12 in	Tin	15	Gold	0.099 µm	3.9 µin	Solder	Square	5 A	0.1 in	2.54 mm	Push-Pull	3.2 mm	0.126 in	UL94 V-0	Green	All	-65 ░C	105 ░C	1	Through Hole, Right Angle	Polybutylene Terephthalate (PBT)
TE Connectivity AMP Connectors 826631-6	Brass	Board to Board, Cable	3 µm	118.1 µin	Breakaway, Header	6.7 mm	0.264 in	Unshrouded	Male Pin	3.05 mm	0.12 in	Tin	6	Gold	0.099 µm	3.9 µin	Solder	Square	5 A	0.1 in	2.54 mm	Push-Pull	3.2 mm	0.126 in	UL94 V-0	Green	All	-65 ░C	105 ░C	1	Through Hole, Right Angle	Polybutylene Terephthalate (PBT)
TE Connectivity AMP Connectors 3-826631-6	Brass	Board to Board, Cable	3 µm	118.1 µin	Breakaway, Header	6.7 mm	0.264 in	Unshrouded	Male Pin	3.05 mm	0.12 in	Tin	36	Gold	0.099 µm	3.9 µin	Solder	Square	5 A	0.1 in	2.54 mm	Push-Pull	3.2 mm	0.126 in	UL94 V-0	Green	All	-65 ░C	105 ░C	1	Through Hole, Right Angle	Polybutylene Terephthalate (PBT)
TE Connectivity AMP Connectors 5-826631-0	Brass	Board to Board, Cable	3 µm	118.1 µin	Breakaway, Header	6.7 mm	0.264 in	Unshrouded	Male Pin	3.05 mm	0.12 in	Tin	50	Gold	0.099 µm	3.9 µin	Solder	Square	5 A	0.1 in	2.54 mm	Push-Pull	3.2 mm	0.126 in	UL94 V-0	Green	All	-65 ░C	105 ░C	1	Through Hole, Right Angle	Polybutylene Terephthalate (PBT)
TE Connectivity AMP Connectors 826631-3	Brass	Board to Board, Cable	3 µm	118.1 µin	Breakaway, Header	6.7 mm	0.264 in	Unshrouded	Male Pin	3.05 mm	0.12 in	Tin		Gold	0.099 µm	3.9 µin	Solder	Square	5 A	0.1 in	2.54 mm	Push-Pull	3.2 mm	0.126 in	UL94 V-0	Green	All	-65 ░C	105 ░C	1	Through Hole, Right Angle	Polybutylene Terephthalate (PBT)
