BU-1111-A-36-0

Active

MUELLER ELECTRIC

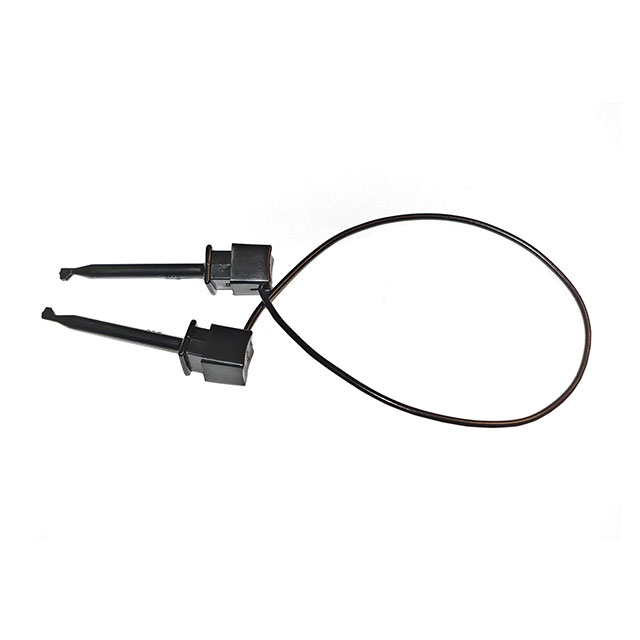

GRABBER PATCH CORD, HOOK CLIP, 36 ", 914 MM, BLACK, 5 A, 300 VAC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

BU-1111-A-36-0

Active

MUELLER ELECTRIC

GRABBER PATCH CORD, HOOK CLIP, 36 ", 914 MM, BLACK, 5 A, 300 VAC

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BU-1111-A-36-0	BU-1111 Series

1st Connector	Mini Hook	Mini Hook
2nd Connector	Mini Hook	Mini Hook
Cable Length	36 in	5 - 48 in
Cable Length	914.4 mm	304.8 - 1524 mm
Configuration	Hook to Grabber, Hook, Grabber	Hook to Grabber, Hook, Grabber
Contents	1 Lead, Black	Red, 1 Lead, Black
Contents	-	1
Current Rating (Amps)	5 A	5 A
Material - Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Temperature Range	105 °C	105 °C
Temperature Range	221 °F	221 °F
Voltage - Rated	300 V	300 V
Wire Gauge	20 AWG	20 AWG

BU-1111 Series

TEST PATCH LEAD, PLUNGER CLIPS, PLUNGER CLIPS, 36 ", 900 MM, RED, 5 A

Part	Cable Length	Cable Length	Temperature Range	Temperature Range	Configuration	Wire Gauge	Voltage - Rated	2nd Connector	Current Rating (Amps)	1st Connector	Material - Insulation	Contents [custom]	Contents
MUELLER ELECTRIC BU-1111-A-36-2	36 in	914.4 mm	105 °C	221 °F	Grabber, Hook, Hook to Grabber	20 AWG	300 V	Mini Hook	5 A	Mini Hook	Poly-Vinyl Chloride (PVC)	1	Red
MUELLER ELECTRIC BU-1111-A-12-0	12 in	304.8 mm	105 °C	221 °F	Grabber, Hook, Hook to Grabber	20 AWG	300 V	Mini Hook	5 A	Mini Hook	Poly-Vinyl Chloride (PVC)		1 Lead, Black
MUELLER ELECTRIC BU-1111-A-60-0	5 ft	1524 mm	105 °C	221 °F	Grabber, Hook, Hook to Grabber	20 AWG	300 V	Mini Hook	5 A	Mini Hook	Poly-Vinyl Chloride (PVC)		1 Lead, Black
MUELLER ELECTRIC BU-1111-A-24-2	24 "	609.6 mm	105 °C	221 °F	Grabber, Hook, Hook to Grabber	20 AWG	300 V	Mini Hook	5 A	Mini Hook	Poly-Vinyl Chloride (PVC)	1	Red
MUELLER ELECTRIC BU-1111-A-24-0	24 "	609.6 mm	105 °C	221 °F	Grabber, Hook, Hook to Grabber	20 AWG	300 V	Mini Hook	5 A	Mini Hook	Poly-Vinyl Chloride (PVC)		1 Lead, Black
MUELLER ELECTRIC BU-1111-A-12-2	12 in	304.8 mm	105 °C	221 °F	Grabber, Hook, Hook to Grabber	20 AWG	300 V	Mini Hook	5 A	Mini Hook	Poly-Vinyl Chloride (PVC)	1	Red
MUELLER ELECTRIC BU-1111-A-36-0	36 in	914.4 mm	105 °C	221 °F	Grabber, Hook, Hook to Grabber	20 AWG	300 V	Mini Hook	5 A	Mini Hook	Poly-Vinyl Chloride (PVC)		1 Lead, Black
MUELLER ELECTRIC BU-1111-A-48-0	48 in	1219.2 mm	105 °C	221 °F	Grabber, Hook, Hook to Grabber	20 AWG	300 V	Mini Hook	5 A	Mini Hook	Poly-Vinyl Chloride (PVC)		1 Lead, Black
MUELLER ELECTRIC BU-1111-A-48-2	48 in	1219.2 mm	105 °C	221 °F	Grabber, Hook, Hook to Grabber	20 AWG	300 V	Mini Hook	5 A	Mini Hook	Poly-Vinyl Chloride (PVC)	1	Red
MUELLER ELECTRIC BU-1111-A-60-2	5 ft	1524 mm	105 °C	221 °F	Grabber, Hook, Hook to Grabber	20 AWG	300 V	Mini Hook	5 A	Mini Hook	Poly-Vinyl Chloride (PVC)	1	Red

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.94
Newark	Each	100	$ 9.82

Description

General part information

BU-1111 Series

36.0" (914.40mm) Mini Hook To Mini Hook Test Lead 300V 1 Lead, Black

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet
