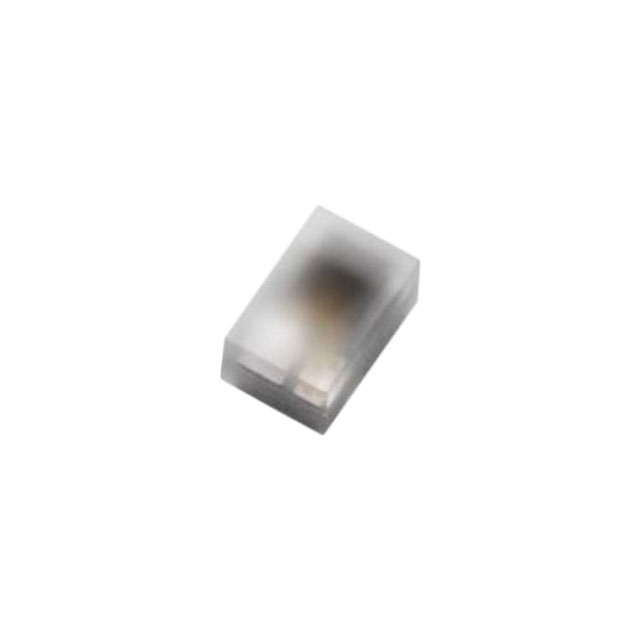

EAIST3045A0
ActiveEverlight Electronics Co Ltd
EMITTER IR 855NM 700MA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EAIST3045A0
ActiveEverlight Electronics Co Ltd
EMITTER IR 855NM 700MA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EAIST3045A0 |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 700 mA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Top View |
| Package / Case | 2-SMD, No Lead Exposed Pad |
| Radiant Intensity (Ie) Min @ If [Min] | 70 mW/sr |
| Type | Infrared (IR) |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 1.7 V |
| Wavelength | 855 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 6.80 | |
| Digi-Reel® | 1 | $ 6.80 | ||
| Tape & Reel (TR) | 1200 | $ 3.38 | ||
| 2000 | $ 3.30 | |||
Description
General part information
EAIST3045 Series
Infrared (IR) Emitter 855nm 1.7V 700mA 70mW/sr @ 350mA 120° 2-SMD, No Lead Exposed Pad
