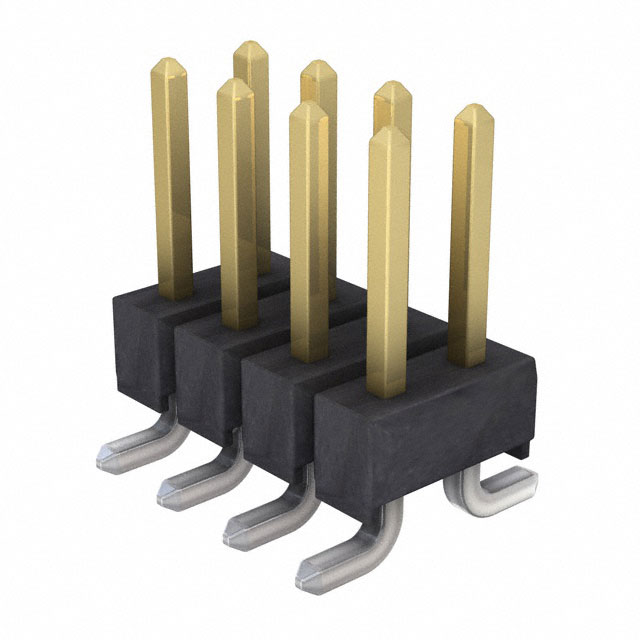

M20-8760442P
ActiveHarwin Inc.
4+4 POS. MALE DIL VERTICAL SMT CONN. (P+P) ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
M20-8760442P
ActiveHarwin Inc.
4+4 POS. MALE DIL VERTICAL SMT CONN. (P+P) ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M20-8760442P |
|---|---|
| Connector Type | Cuttable, Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Length - Mating | 0.228 in |
| Contact Length - Mating | 5.8 mm |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Features | Pick and Place |
| Insulation Color | Black |
| Insulation Height | 0.1 in |
| Insulation Height | 2.54 mm |
| Insulation Material | Nylon 6T, Polyamide (PA6T) |
| Mated Stacking Heights | 12.63 mm, 18.13 mm, 12.23 mm, 11.53 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 8 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Shrouding | Unshrouded |
| Style | Board to Board, Cable |
| Termination | Solder |
| Voltage Rating | 250 VDC |
M20-876 Series
| Part | Mounting Type | Insulation Material | Voltage Rating | Shrouding | Material Flammability Rating | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Contact Material | Mated Stacking Heights | Contact Finish - Mating | Insulation Height | Insulation Height | Termination | Connector Type | Number of Positions | Current Rating (Amps) | Features | Number of Positions Loaded | Insulation Color | Style | Contact Length - Mating | Contact Length - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Type | Contact Shape | Fastening Type | Number of Rows | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | Surface Mount | Nylon 6T Polyamide (PA6T) | 250 VDC | Unshrouded | UL94 V-0 | 0.1 in | 2.54 mm | Tin | Brass | 11.53 mm 12.23 mm 12.63 mm 18.13 mm | Gold | 0.1 in | 2.54 mm | Solder | Cuttable Header | 8 | 3 A | Pick and Place | All | Black | Board to Board Cable | 0.228 in | 5.8 mm | -40 °C | 105 ░C | 2.54 mm | 0.1 in | Male Pin | Square | Push-Pull | 2 | |
Harwin Inc. | Surface Mount | Nylon 6T Polyamide (PA6T) | 250 VAC | Unshrouded | UL94 V-0 | 0.1 in | 2.54 mm | Tin | Brass | 0.1 in | 2.54 mm | Solder | Cuttable Header | 14 | 3 A | All | Black | Board to Board Cable | 0.228 in | 5.8 mm | -40 °C | 105 ░C | 2.54 mm | 0.1 in | Male Pin | Square | Push-Pull | 2 | ||||
Harwin Inc. | Surface Mount | Nylon 6T Polyamide (PA6T) | 250 VDC | Unshrouded | UL94 V-0 | 0.1 in | 2.54 mm | Tin | Brass | 11.53 mm 12.23 mm 12.63 mm 18.13 mm | 0.1 in | 2.54 mm | Solder | Cuttable Header | 3 A | All | Black | Board to Board Cable | 0.228 in | 5.8 mm | -40 °C | 105 ░C | 2.54 mm | 0.1 in | Male Pin | Square | Push-Pull | 2 | 16 | |||
Harwin Inc. | Surface Mount | Nylon 6T Polyamide (PA6T) | 250 VDC | Unshrouded | UL94 V-0 | 0.1 in | 2.54 mm | Tin | Brass | 11.53 mm 12.23 mm 12.63 mm 18.13 mm | 0.1 in | 2.54 mm | Solder | Cuttable Header | 10 | 3 A | All | Black | Board to Board Cable | 0.228 in | 5.8 mm | -40 °C | 105 ░C | 2.54 mm | 0.1 in | Male Pin | Square | Push-Pull | 2 | |||
Harwin Inc. | Surface Mount | Nylon 6T Polyamide (PA6T) | 250 VDC | Unshrouded | UL94 V-0 | 0.1 in | 2.54 mm | Tin | Brass | 11.53 mm 12.23 mm 12.63 mm 18.13 mm | 0.1 in | 2.54 mm | Solder | Cuttable Header | 4 | 3 A | Pick and Place | All | Black | Board to Board Cable | 0.228 in | 5.8 mm | -40 °C | 105 ░C | 2.54 mm | 0.1 in | Male Pin | Square | Push-Pull | 2 | ||
Harwin Inc. | Surface Mount | Nylon 6T Polyamide (PA6T) | 250 VAC | Unshrouded | UL94 V-0 | 0.1 in | 2.54 mm | Tin | Brass | 0.1 in | 2.54 mm | Solder | Cuttable Header | 8 | 3 A | All | Black | Board to Board Cable | 0.228 in | 5.8 mm | -40 °C | 105 ░C | 2.54 mm | 0.1 in | Male Pin | Square | Push-Pull | 2 | ||||
Harwin Inc. | Surface Mount | Nylon 6T Polyamide (PA6T) | 250 VDC | Unshrouded | UL94 V-0 | 0.1 in | 2.54 mm | Tin | Brass | 11.53 mm 12.23 mm 12.63 mm 18.13 mm | Gold | 0.1 in | 2.54 mm | Solder | Cuttable Header | 3 A | Pick and Place | All | Black | Board to Board Cable | 0.228 in | 5.8 mm | -40 °C | 105 ░C | 2.54 mm | 0.1 in | Male Pin | Square | Push-Pull | 2 | 16 | |
Harwin Inc. | Surface Mount | Nylon 6T Polyamide (PA6T) | 250 VDC | Unshrouded | UL94 V-0 | 0.1 in | 2.54 mm | Tin | Brass | 11.53 mm 12.23 mm 12.63 mm 18.13 mm | Gold | 0.1 in | 2.54 mm | Solder | Cuttable Header | 36 | 3 A | All | Black | Board to Board Cable | 0.228 in | 5.8 mm | -40 °C | 105 ░C | 2.54 mm | 0.1 in | Male Pin | Square | Push-Pull | 2 | ||
Harwin Inc. | Surface Mount | Nylon 6T Polyamide (PA6T) | 250 VDC | Unshrouded | UL94 V-0 | 0.1 in | 2.54 mm | Tin | Brass | 11.53 mm 12.23 mm 12.63 mm 18.13 mm | Gold | 0.1 in | 2.54 mm | Solder | Cuttable Header | 40 | 3 A | All | Black | Board to Board Cable | 0.228 in | 5.8 mm | -40 °C | 105 ░C | 2.54 mm | 0.1 in | Male Pin | Square | Push-Pull | 2 | ||
Harwin Inc. | Surface Mount | Nylon 6T Polyamide (PA6T) | 250 VDC | Unshrouded | UL94 V-0 | 0.1 in | 2.54 mm | Tin | Brass | 11.53 mm 12.23 mm 12.63 mm 18.13 mm | Gold | 0.1 in | 2.54 mm | Solder | Cuttable Header | 14 | 3 A | All | Black | Board to Board Cable | 0.228 in | 5.8 mm | -40 °C | 105 ░C | 2.54 mm | 0.1 in | Male Pin | Square | Push-Pull | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M20-876 Series
Connector Header Surface Mount 8 position 0.100" (2.54mm)
