2909534

Active

Phoenix Contact

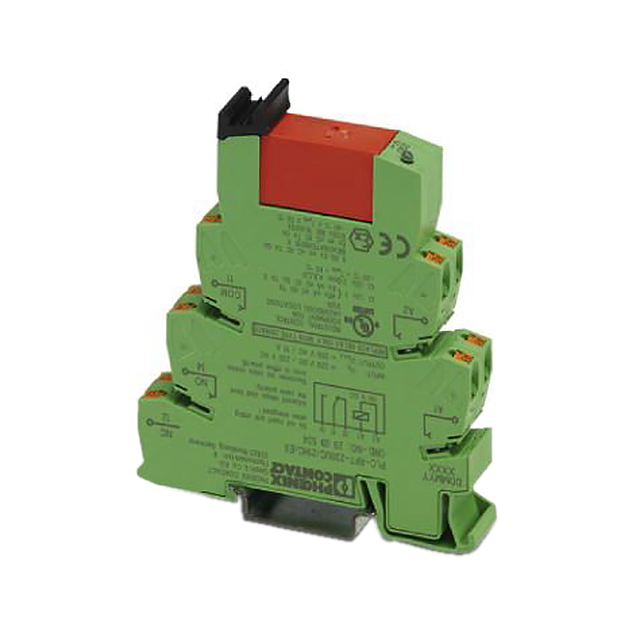

RELAY GEN PURPOSE SPDT 10A 230V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2909534

Active

Phoenix Contact

RELAY GEN PURPOSE SPDT 10A 230V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 38.09
		10	$ 35.59
		50	$ 32.75
		100	$ 30.26
		250	$ 28.83

Description

General part information

29095 Series

General Purpose Relay SPDT (1 Form C) 230VAC/DC Coil DIN Rail

Documents

Technical documentation and resources

Datasheet

Specification	2909534	29095 Series

Approval Agency	UKCA, CE	UKCA, CE
Coil Current	4.5 mA	3.2 - 33 mA
Coil Resistance	51.11 kOhms	2.667 - 1440 kOhms
Coil Type	Non Latching	Non Latching
Coil Voltage	230 VAC	12 - 230 VAC
Contact Form	SPDT (1 Form C)	SPDT (1 Form C), DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi)	Silver Nickel (AgNi), Silver Tin Oxide (AgSnO)
Contact Rating (Current)	10 A	6 - 10 A
Features	Lighted Indicator, Socket Included	Lighted Indicator, Socket Included
Mounting Type	DIN Rail	DIN Rail
Operate Time	7 ms	5 - 8 ms
Operating Temperature [Max]	55 °C	55 - 60 °C
Operating Temperature [Min]	-40 °C	-40 °C
Relay Type	General Purpose	General Purpose
Release Time	10 ms	8 - 15 ms
Switching Voltage	250 VAC, 250 VDC	250 VAC
Termination Style	Spring Terminal	Spring Terminal, Screw Terminal

Part	Coil Type	Relay Type	Contact Rating (Current)	Termination Style	Coil Voltage	Contact Form	Switching Voltage	Mounting Type	Contact Material	Operate Time	Approval Agency	Coil Current	Features	Operating Temperature [Min]	Operating Temperature [Max]	Release Time	Coil Resistance
Phoenix Contact 2909533	Non Latching	General Purpose	10 A	Spring Terminal	120 VAC, 120 VDC	SPDT (1 Form C)	250 VAC, 250 VDC	DIN Rail	Silver Nickel (AgNi)	7 ms	CE, UKCA	4.5 mA	Lighted Indicator, Socket Included	-40 °C	60 °C	10 ms
Phoenix Contact 2909512	Non Latching	General Purpose	6 A	Screw Terminal	230 VAC	DPDT (2 Form C)	250 VAC, 250 VDC	DIN Rail	Silver Nickel (AgNi)	7 ms	CE, UKCA	4.5 mA	Lighted Indicator, Socket Included	-40 °C	55 °C	10 ms	51.1 kOhms
Phoenix Contact 2909509	Non Latching	General Purpose	6 A	Screw Terminal	24 VDC	DPDT (2 Form C)	250 VAC, 250 VDC	DIN Rail	Silver Nickel (AgNi)	8 ms	CE, UKCA	18 mA	Lighted Indicator, Socket Included	-40 °C	60 °C	10 ms	1440 Ohms
Phoenix Contact 2909524	Non Latching	General Purpose	6 A	Screw Terminal	24 VDC	SPDT (1 Form C)	250 VAC, 250 VDC	DIN Rail	Silver Tin Oxide (AgSnO)	5 ms	CE, UKCA	9 mA	Lighted Indicator, Socket Included	-40 °C	60 °C	8 ms	2.667 kOhms
Phoenix Contact 2909525	Non Latching	General Purpose	6 A	Screw Terminal	120 VAC, 120 VDC	SPDT (1 Form C)	250 VAC, 250 VDC	DIN Rail	Silver Tin Oxide (AgSnO)	6 ms	CE, UKCA	3.5 mA	Lighted Indicator, Socket Included	-40 °C	60 °C	15 ms	34.29 kOhms
Phoenix Contact 2909534	Non Latching	General Purpose	10 A	Spring Terminal	230 VAC	SPDT (1 Form C)	250 VAC, 250 VDC	DIN Rail	Silver Nickel (AgNi)	7 ms	CE, UKCA	4.5 mA	Lighted Indicator, Socket Included	-40 °C	55 °C	10 ms	51.11 kOhms
Phoenix Contact 2909514	Non Latching	General Purpose	6 A	Spring Terminal	24 VDC	DPDT (2 Form C)	250 VAC, 250 VDC	DIN Rail	Silver Nickel (AgNi)	8 ms	CE, UKCA	18 mA	Lighted Indicator, Socket Included	-40 °C	60 °C	10 ms	1333 Ohms
Phoenix Contact 2909532	Non Latching	General Purpose	10 A	Spring Terminal	24 VDC	SPDT (1 Form C)	250 VAC, 250 VDC	DIN Rail	Silver Nickel (AgNi)	8 ms	CE, UKCA	18 mA	Lighted Indicator, Socket Included	-40 °C	60 °C	10 ms	1333 Ohms
Phoenix Contact 2909527	Non Latching	General Purpose	6 A	Spring Terminal	12 VDC	SPDT (1 Form C)	250 VAC, 250 VDC	DIN Rail	Silver Tin Oxide (AgSnO)	5 ms	CE, UKCA	15.3 mA	Lighted Indicator, Socket Included	-40 °C	60 °C	8 ms	784.3 Ohms
Phoenix Contact 2909529	Non Latching	General Purpose	6 A	Spring Terminal	120 VAC, 120 VDC	SPDT (1 Form C)	250 VAC, 250 VDC	DIN Rail	Silver Tin Oxide (AgSnO)	6 ms	CE, UKCA	3.5 mA	Lighted Indicator, Socket Included	-40 °C	60 °C	15 ms	34.29 kOhms

Part

Coil Type

Relay Type

Contact Rating (Current)

Termination Style

Coil Voltage

Contact Form

Switching Voltage

Mounting Type

Contact Material

Operate Time

Approval Agency

Coil Current

Features

Operating Temperature [Min]

Operating Temperature [Max]

Release Time

Coil Resistance

Phoenix Contact

2909533

Non Latching

General Purpose

10 A

Spring Terminal

120 VAC, 120 VDC

SPDT (1 Form C)

250 VAC, 250 VDC

DIN Rail

Silver Nickel (AgNi)

7 ms

CE, UKCA

4.5 mA

Lighted Indicator, Socket Included

-40 °C

60 °C

10 ms

Phoenix Contact

2909512

Non Latching

General Purpose

6 A

Screw Terminal

230 VAC

DPDT (2 Form C)

250 VAC, 250 VDC

DIN Rail

Silver Nickel (AgNi)

7 ms

CE, UKCA

4.5 mA

Lighted Indicator, Socket Included

-40 °C

55 °C

10 ms

51.1 kOhms

Phoenix Contact

2909509

Non Latching

General Purpose

6 A

Screw Terminal

24 VDC

DPDT (2 Form C)

250 VAC, 250 VDC

DIN Rail

Silver Nickel (AgNi)

8 ms

CE, UKCA

18 mA

Lighted Indicator, Socket Included

-40 °C

60 °C

10 ms

1440 Ohms

Phoenix Contact

2909524

Non Latching

General Purpose

6 A

Screw Terminal

24 VDC

SPDT (1 Form C)

250 VAC, 250 VDC

DIN Rail

Silver Tin Oxide (AgSnO)

5 ms

CE, UKCA

9 mA

Lighted Indicator, Socket Included

-40 °C

60 °C

8 ms

2.667 kOhms

Phoenix Contact

2909525

Non Latching

General Purpose

6 A

Screw Terminal

120 VAC, 120 VDC

SPDT (1 Form C)

250 VAC, 250 VDC

DIN Rail

Silver Tin Oxide (AgSnO)

6 ms

CE, UKCA

3.5 mA

Lighted Indicator, Socket Included

-40 °C

60 °C

15 ms

34.29 kOhms

Phoenix Contact

2909534

Non Latching

General Purpose

10 A

Spring Terminal

230 VAC

SPDT (1 Form C)

250 VAC, 250 VDC

DIN Rail

Silver Nickel (AgNi)

7 ms

CE, UKCA

4.5 mA

Lighted Indicator, Socket Included

-40 °C

55 °C

10 ms

51.11 kOhms

Phoenix Contact

2909514

Non Latching

General Purpose

6 A

Spring Terminal

24 VDC

DPDT (2 Form C)

250 VAC, 250 VDC

DIN Rail

Silver Nickel (AgNi)

8 ms

CE, UKCA

18 mA

Lighted Indicator, Socket Included

-40 °C

60 °C

10 ms

1333 Ohms

Phoenix Contact

2909532

Non Latching

General Purpose

10 A

Spring Terminal

24 VDC

SPDT (1 Form C)

250 VAC, 250 VDC

DIN Rail

Silver Nickel (AgNi)

8 ms

CE, UKCA

18 mA

Lighted Indicator, Socket Included

-40 °C

60 °C

10 ms

1333 Ohms

Phoenix Contact

2909527

Non Latching

General Purpose

6 A

Spring Terminal

12 VDC

SPDT (1 Form C)

250 VAC, 250 VDC

DIN Rail

Silver Tin Oxide (AgSnO)

5 ms

CE, UKCA

15.3 mA

Lighted Indicator, Socket Included

-40 °C

60 °C

8 ms

784.3 Ohms

Phoenix Contact

2909529

Non Latching

General Purpose

6 A

Spring Terminal

120 VAC, 120 VDC

SPDT (1 Form C)

250 VAC, 250 VDC

DIN Rail

Silver Tin Oxide (AgSnO)

6 ms

CE, UKCA

3.5 mA

Lighted Indicator, Socket Included

-40 °C

60 °C

15 ms

34.29 kOhms
