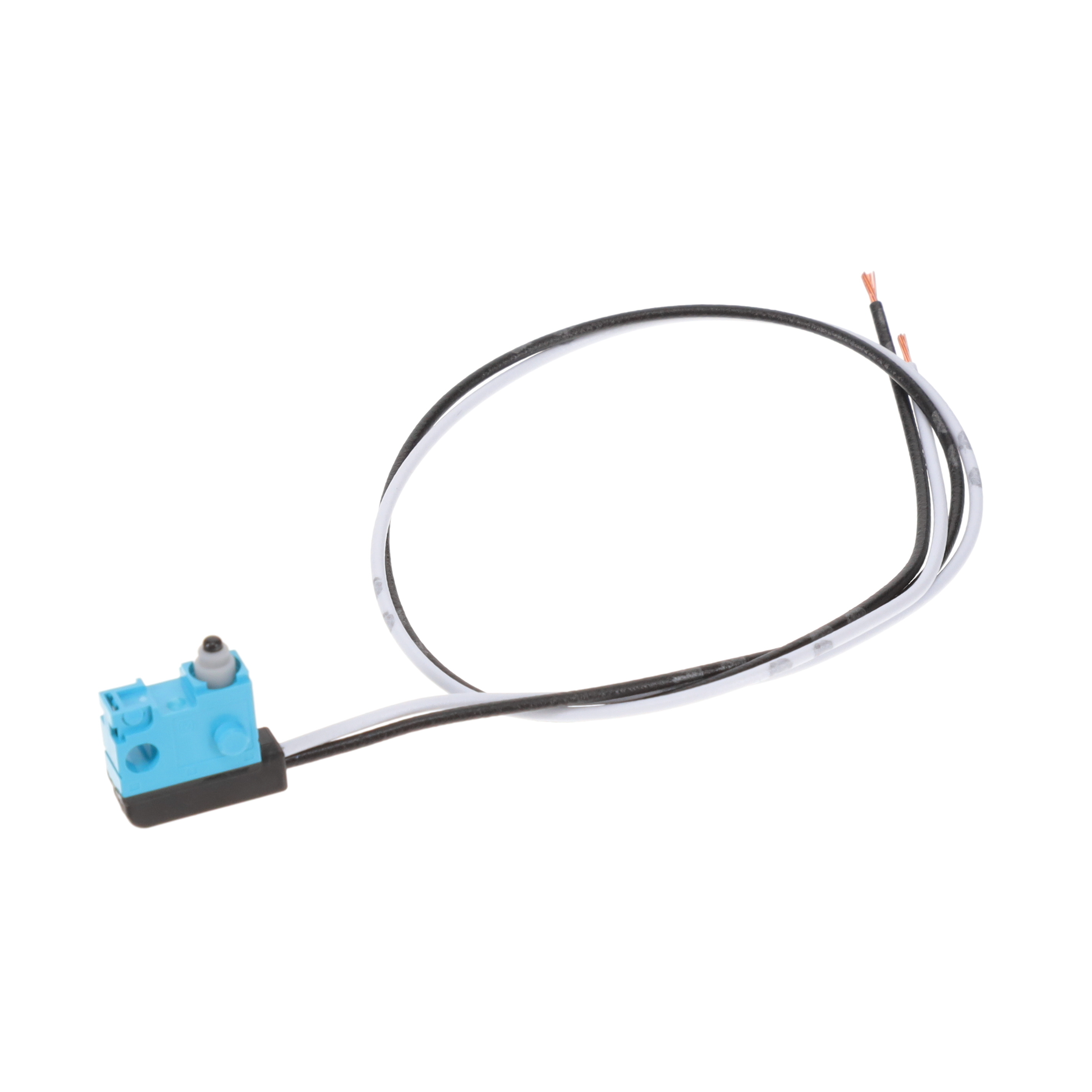

ASQ10330
ActivePanasonic Electric Works
SWITCH SNAP ACT SPST-NO 0.1A 30V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsHow to Read Date Codes
ASQ10330
ActivePanasonic Electric Works
SWITCH SNAP ACT SPST-NO 0.1A 30V
Deep-Dive with AI
DocumentsHow to Read Date Codes
Technical Specifications
Parameters and characteristics for this part
| Specification | ASQ10330 |
|---|---|
| Actuator Type | Round (Pin Plunger) |
| Circuit | SPST-NO |
| Current Rating (Amps) | 100 mA |
| Electrical Life | 200000 Cycles |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Type | Chassis Mount |
| Operating Force | 153 gf |
| Operating Position | 8.4 mm |
| Operating Position | 0.33 in |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Overtravel | 0.087 in |
| Overtravel | 2.2 mm |
| Switch Function | Off-Mom |
| Termination Style | Wire Leads |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.63 | |
| 10 | $ 6.10 | |||
| 25 | $ 5.80 | |||
| 50 | $ 5.64 | |||
| 100 | $ 4.88 | |||
| 250 | $ 4.58 | |||
| 500 | $ 4.35 | |||
| 1000 | $ 4.19 | |||
Description
General part information
ASQ103 Series
Switch SPST-NO Chassis Mount
