5000FL 002U1000

Active

Belden Inc.

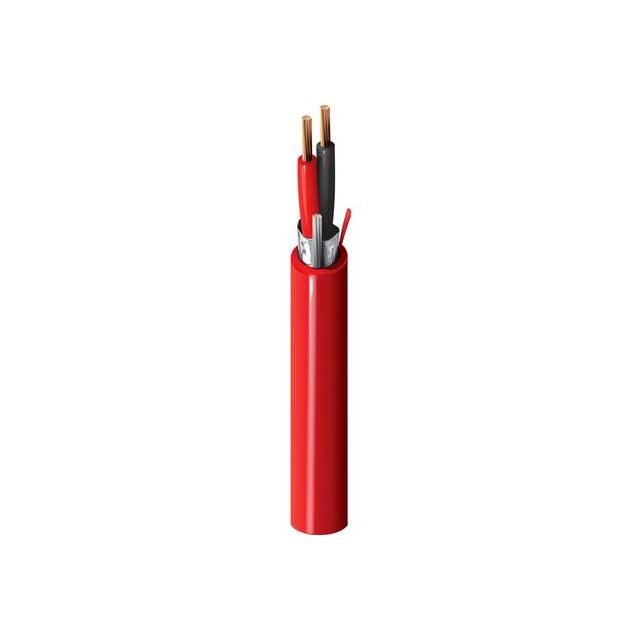

CABLE 2COND 12AWG RED SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 12AWG RED SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	5000FL 002U1000

Cable Type	Multi-Conductor
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Bare
Conductor Strand [custom]	19
Conductor Strand [custom]	25
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.264 in
Jacket (Insulation) Diameter [diameter]	6.71 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC), Riser
Jacket (Insulation) Thickness	0.432 mm
Jacket (Insulation) Thickness	0.017 in
Jacket Color	Red
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Ratings	UL Style FPLR
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Alarm, Safety
Voltage	300 V
Wire Gauge	12 AWG

Part	Jacket (Insulation) Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Type	Conductor Material	Cable Type	Length	Length	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Conductor Insulation	Number of Conductors	Shield Material	Wire Gauge	Usage	Shield Coverage	Ratings	Features	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]
Belden Inc. 5000FL 002U1000	Poly-Vinyl Chloride (PVC) Riser	0.432 mm	0.017 in	Foil	Copper Bare	Multi-Conductor	1000 ft	304.8 m	0.264 in	6.71 mm	300 V	Polypropylene (PP)	2	Aluminum	12 AWG	Alarm Safety	100 %	UL Style FPLR	Drain Wire	Red	19	25

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 0.67

General part information

2 Conductor Multi-Conductor Cable Red 12 AWG Foil 1000.0' (304.8m)
