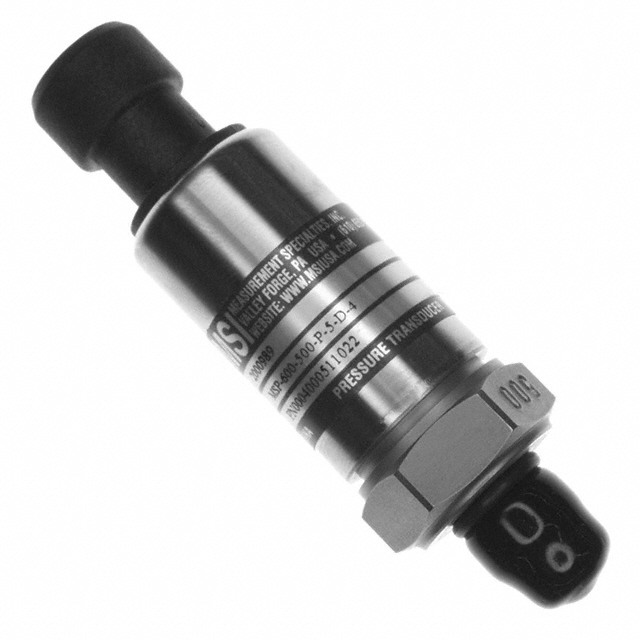

2000989

Obsolete

TE Connectivity Measurement Specialties

TRANSDUCER 4-20MA 500PSI

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2000989

Obsolete

TE Connectivity Measurement Specialties

TRANSDUCER 4-20MA 500PSI

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2000989

Accuracy	0.25 %
Applications	Industrial Automation
Features	Temperature Compensated, Amplified Output
Maximum Pressure [Max]	1000 PSI
Maximum Pressure [Max]	6894.76 kPa
Operating Pressure	3447.38 kPa
Operating Pressure	500 PSI
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Output [Max]	20 mA
Output [Min]	4 mA
Output Type	Analog Current
Package / Case	Cylinder
Port Size [custom]	NPT
Port Size [custom]	Male
Port Size [x]	0.25 "
Port Size [x]	6.35 mm
Port Style	Threaded
Pressure Type	Vented Gauge
Termination Style	Connector
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

2000 Series

Part	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Output Type	Accuracy	Features	Operating Pressure	Operating Pressure	Termination Style	Output [Max]	Output [Min]	Port Size	Port Size	Pressure Type	Port Style	Maximum Pressure [Max]	Maximum Pressure [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Port Size [custom]	Port Size [x]	Port Size [x]	Port Size [custom]	Maximum Pressure	Maximum Pressure	Operating Pressure	Operating Pressure [x]	Operating Pressure [x]	Temperature Range [Min]	Temperature Range [Max]	Terminal Type	Diameter - Protective Tube [diameter]	Conductor Type	Length - Lead Wire	Length - Lead Wire	Element Type
TE Connectivity Measurement Specialties 2000987	Cylinder	30 VDC	10 VDC	Analog Current	0.25 %	Amplified Output Temperature Compensated	689.48 kPa	100 PSI	Connector	20 mA	4 mA	Male UNF	0.4375 " 11.11 mm	Vented Gauge	Threaded	200 PSI	1378.95 kPa	100 °C	-40 °C	Industrial Automation
TE Connectivity Measurement Specialties 2000486	Cylinder	30 VDC	10 VDC	Analog Current	1.5 %	Amplified Output Temperature Compensated	689.48 kPa	100 PSI	Cable	20 mA	4 mA			Vented Gauge	Threaded	200 PSI	1378.95 kPa	85 °C	-40 °C	Industrial Automation	NPT	0.25 "	6.35 mm	Male
TE Connectivity Measurement Specialties 2000984	Cylinder	30 VDC	10 VDC	Analog Current	0.25 %	Amplified Output Temperature Compensated	25 PSI		Connector	20 mA	4 mA	Male UNF	0.4375 " 11.11 mm	Vented Gauge	Threaded			100 °C	-40 °C	Industrial Automation					344.74 kPa	50 PSI	172.37 kPa
TE Connectivity Measurement Specialties 2000329	Cylinder	30 VDC	10 VDC	Analog Current	1 %	Amplified Output Temperature Compensated	25 PSI		Cable/Wire Leads	20 mA	4 mA			Vented Gauge	Threaded			85 °C	-20 C	Industrial Automation	NPT	0.25 "	6.35 mm	Male	344.74 kPa	50 PSI	172.37 kPa
TE Connectivity Measurement Specialties 2000989	Cylinder	30 VDC	10 VDC	Analog Current	0.25 %	Amplified Output Temperature Compensated	3447.38 kPa	500 PSI	Connector	20 mA	4 mA			Vented Gauge	Threaded	1000 PSI	6894.76 kPa	100 °C	-40 °C	Industrial Automation	NPT	0.25 "	6.35 mm	Male
TE Connectivity Measurement Specialties 2000330	Cylinder	30 VDC	10 VDC	Analog Voltage	1 %	Amplified Output Temperature Compensated	344.74 kPa	50 PSI	Cable/Wire Leads	5 V	1 V			Vented Gauge	Threaded	100 PSI	689.48 kPa	85 °C	-20 C	Industrial Automation	NPT	0.25 "	6.35 mm	Male
TE Connectivity Measurement Specialties 2000316	Cylinder	30 VDC	10 VDC	Analog Current	1 %	Amplified Output Temperature Compensated	25 PSI		Cable/Wire Leads	20 mA	4 mA			Vented Gauge	Threaded			85 °C	-20 C	Industrial Automation	NPT	0.25 "	6.35 mm	Male	344.74 kPa	50 PSI	172.37 kPa
TE Connectivity Measurement Specialties 2000933	Cylinder	30 VDC	10 VDC	Analog Current	0.25 %	Amplified Output Temperature Compensated			Cable 2'	20 mA	4 mA			Vented Gauge	Threaded			100 °C	-40 °C	Industrial Automation	NPT	0.25 "	6.35 mm	Male	137895.15 kPa	20000 PSI		10000 PSI	68947.57 kPa
TE Connectivity Measurement Specialties 20009210-00																														0 °C	750 °C	Exposed Lead Wires	3.18 mm	Non-Grounded	35.98 in	914 mm	J - Type
TE Connectivity Measurement Specialties 2000531	Cylinder	30 VDC	10 VDC	Analog Current	1.5 %	Amplified Output Temperature Compensated	17236.89 kPa	2500 PSI	Cable	20 mA	4 mA			Vented Gauge	Threaded	5000 PSI	34473.79 kPa	85 °C	-40 °C	Industrial Automation	NPT	0.25 "	6.35 mm	Male

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 137.21
		10	$ 118.75

Description

General part information

2000 Series

TRANSDUCER 4-20MA 500PSI
