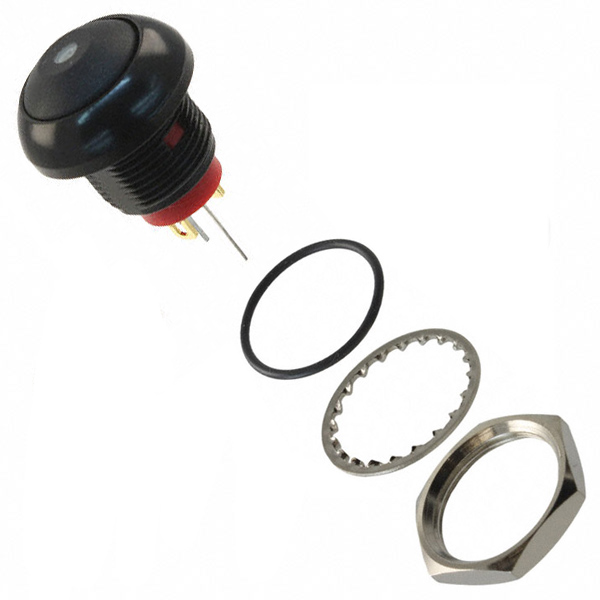

RP8300B2M1CEBLKBLKBLU

Active

E-Switch

SWITCH PB SPST-NO 200MA 250V

Deep-Dive with AI

Search across all available documentation for this part.

RP8300B2M1CEBLKBLKBLU

Active

E-Switch

SWITCH PB SPST-NO 200MA 250V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RP8300B2M1CEBLKBLKBLU

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Black
Current Rating (Amps)	200 mA
Electrical Life	500000 Cycles
Illumination Type, Color	LED, Blue
Illumination Voltage (Nominal)	2.8 VDC
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	13.6 mm
Switch Function	Off-Mom
Termination Style	Solder Lug
Type	Illuminated, Standard
Voltage Rating - AC	250 V
Voltage Rating - DC	50 VDC

RP8300 Series

Part	Switch Function	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Color - Actuator/Cap	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Actuator Marking	Mounting Type	Voltage Rating - AC	Actuator Type	Voltage Rating - DC	Electrical Life	Type	Circuit	Ingress Protection	Illumination Voltage (Nominal)	Illumination Type, Color
E-Switch RP8300B2M1CECHRBLKNIL	Off-Mom	Solder Lug	-30 ░C	85 °C	Black	200 mA	13.6 mm	No Marking	Panel Mount Front	250 V	Button Round	50 VDC	500000 Cycles	Standard	SPST-NO	IP67 - Dust Tight Waterproof
E-Switch RP8300B2M1CEBLKBLKNIL	Off-Mom	Solder Lug	-30 ░C	85 °C	Black	200 mA	13.6 mm	No Marking	Panel Mount Front	250 V	Button Round	50 VDC	500000 Cycles	Standard	SPST-NO	IP67 - Dust Tight Waterproof
E-Switch RP8300B2M1CEBLKBLKBLU	Off-Mom	Solder Lug	-30 ░C	85 °C	Black	200 mA	13.6 mm	No Marking	Panel Mount Front	250 V	Button Round	50 VDC	500000 Cycles	Illuminated Standard	SPST-NO	IP67 - Dust Tight Waterproof	2.8 VDC	Blue LED
E-Switch RP8300B2M1CEBLKREDNIL	Off-Mom	Solder Lug	-30 ░C	85 °C	Red	200 mA	13.6 mm	No Marking	Panel Mount Front	250 V	Button Round	50 VDC	500000 Cycles	Standard	SPST-NO	IP67 - Dust Tight Waterproof
E-Switch RP8300B2M1CEBLKBLKRED	Off-Mom	Solder Lug	-30 ░C	85 °C	Black	200 mA	13.6 mm	No Marking	Panel Mount Front	250 V	Button Round	50 VDC	500000 Cycles	Illuminated Standard	SPST-NO	IP67 - Dust Tight Waterproof	2.1 VDC	LED Red
E-Switch RP8300B2M1CEBLKBLUNIL	Off-Mom	Solder Lug	-30 ░C	85 °C	Blue	200 mA	13.6 mm	No Marking	Panel Mount Front	250 V	Button Round	50 VDC	500000 Cycles	Standard	SPST-NO	IP67 - Dust Tight Waterproof
E-Switch RP8300B2M1CEBLKBLKGRN	Off-Mom	Solder Lug	-30 ░C	85 °C	Black	200 mA	13.6 mm	No Marking	Panel Mount Front	250 V	Button Round	50 VDC	500000 Cycles	Illuminated Standard	SPST-NO	IP67 - Dust Tight Waterproof	2 VDC	Green LED

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.59
		10	$ 6.82
		25	$ 6.51
		50	$ 6.23
		100	$ 5.98
		250	$ 5.67
		500	$ 5.25
		1000	$ 5.00

Description

General part information

RP8300 Series

Pushbutton Switch SPST-NO Standard, Illuminated Panel Mount, Front

Documents

Technical documentation and resources

No documents available
