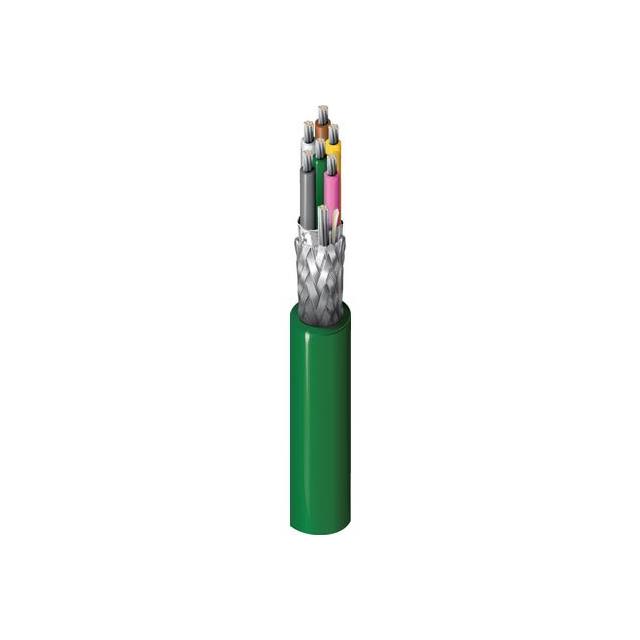

3119A Y5P1000

Active

Belden Inc.

MULTI-PAIR 9COND 18/24AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 9COND 18/24AWG

Technical Specifications

Parameters and characteristics for this part

Specification	3119A Y5P1000

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC), Polyethylene (PE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG, 26 AWG
Conductor Strand [custom]	7
Features	Drain Wire, UV Resistant
Jacket (Insulation) Diameter [diameter]	8.46 mm
Jacket (Insulation) Diameter [diameter]	0.333 in
Jacket (Insulation) Material	Polyurethane (PU)
Jacket (Insulation) Thickness	0.0353 in
Jacket (Insulation) Thickness	0.897 mm
Jacket Color	Green
Length	1000 ft
Length	304.8 m
Number of Conductors	9
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Ratings	UL Style 20233
Shield Coverage	90 %, 100 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Voltage	300 V
Wire Gauge	24 AWG, 18 AWG

Part	Shield Coverage	Jacket Color	Conductor Material	Ratings	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Wire Gauge	Shield Material	Jacket (Insulation) Material	Conductor Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Number of Conductors	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length	Cable Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Features	Shield Type
Belden Inc. 3119A Y5P1000	90 % 100 %	Green	Copper Tinned	UL Style 20233	8.46 mm	0.333 in	300 V	18 AWG 24 AWG	Aluminum Copper Tinned	Polyurethane (PU)	Poly-Vinyl Chloride (PVC) Polyethylene (PE)	-40 °C	80 C	9	26 AWG 32 AWG	7	1000 ft	304.8 m	Multi-Pair	0.0353 in	0.897 mm	Drain Wire UV Resistant	Braid Foil

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 5.40

General part information

9 (3 Pair Twisted) Conductor Multi-Pair Cable Green 18 AWG, 24 AWG Foil, Braid 1000.0' (304.8m)
