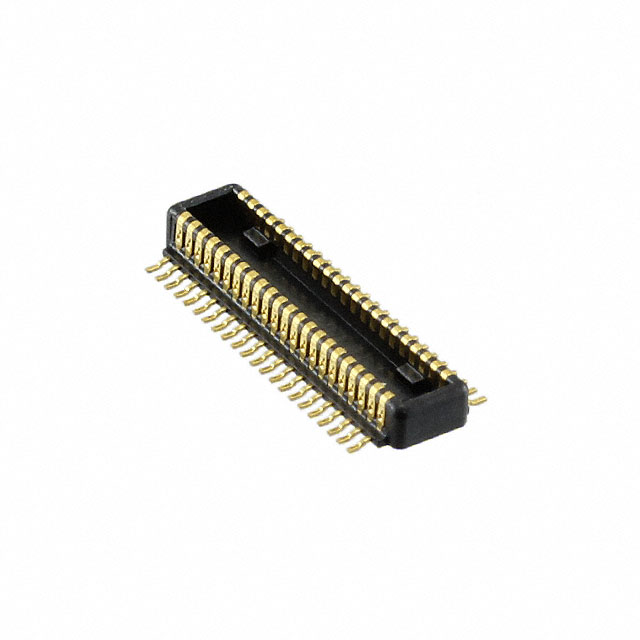

AXK844145WG

Obsolete

Panasonic Electric Works

CONN HDR 44POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

CONN HDR 44POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXK844145WG

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Height Above Board	0.052 in
Height Above Board	1.32 mm
Mated Stacking Heights	1.5 mm, 2 mm, 2.5 mm
Mounting Type	Surface Mount
Number of Positions	44
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Mounting Type	Connector Type	Mated Stacking Heights	Number of Rows	Contact Finish	Pitch [x]	Pitch [x]	Height Above Board	Height Above Board	Number of Positions	Features
Panasonic Electric Works AXK844145WG	Surface Mount	Header Outer Shroud Contacts	1.5 mm 2 mm 2.5 mm	2	Gold	0.016 in	0.4 mm	0.052 in	1.32 mm	44
Panasonic Electric Works AXK844115WG	Surface Mount	Header Outer Shroud Contacts	1.5 mm 2 mm 2.5 mm	2	Gold	0.016 in	0.4 mm	0.052 in	1.32 mm	44	Board Guide Solder Retention

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

44 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
