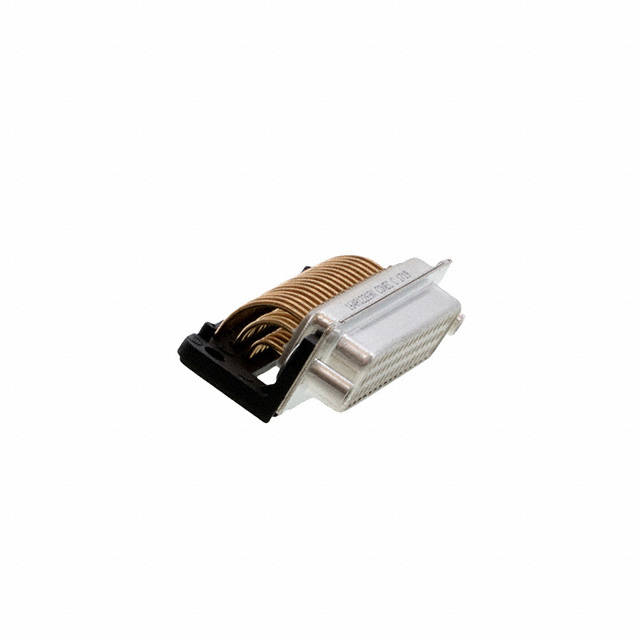

164A12269X

Active

Amphenol CONEC

CONN D-SUB RCPT 50POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

164A12269X

Active

Amphenol CONEC

CONN D-SUB RCPT 50POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	164A12269X

Backset Spacing	9.4 mm
Backset Spacing	0.37 in
Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	7.5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Mounting Brackets
Flange Feature	4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	50
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	5
Termination	Solder
Voltage Rating	125 VDC

164A122 Series

Part	Dielectric Material	Contact Type	Color	Shell Size, Connector Layout	Contact Finish Thickness	Contact Finish Thickness	Features	Voltage Rating	Material Flammability Rating	Termination	Mounting Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Backset Spacing	Backset Spacing	Number of Rows	Contact Finish	Contact Material	Flange Feature	Connector Type	Current Rating (Amps)	Connector Style	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout
Amphenol CONEC 164A12269X	Polybutylene Terephthalate (PBT) Glass Filled	Signal	Black	5	8 çin	0.203 çm	Mounting Brackets	125 VDC	UL94 V-0	Solder	Board Edge Right Angle Through Hole	50	-55 °C	125 °C	9.4 mm	0.37 in	3	Gold	Copper Alloy	4-40	Receptacle Female Sockets	7.5 A	D-Sub
Amphenol CONEC 164A12229X	Polybutylene Terephthalate (PBT) Glass Filled	Signal	Black		8 çin	0.203 çm	Mounting Brackets	125 VDC	UL94 V-0	Solder	Board Edge Right Angle Through Hole	9	-55 °C	125 °C	9.4 mm	0.37 in	2	Gold	Copper Alloy	4-40	Receptacle Female Sockets	7.5 A	D-Sub	DE E	1
Amphenol CONEC 164A12259X	Polybutylene Terephthalate (PBT) Glass Filled	Signal	Black		8 çin	0.203 çm	Mounting Brackets	125 VDC	UL94 V-0	Solder	Board Edge Right Angle Through Hole	37	-55 °C	125 °C	9.4 mm	0.37 in	2	Gold	Copper Alloy	4-40	Receptacle Female Sockets	7.5 A	D-Sub			4 (DC C)
Amphenol CONEC 164A12239X	Polybutylene Terephthalate (PBT) Glass Filled	Signal	Black	2	8 çin	0.203 çm	Mounting Brackets	125 VDC	UL94 V-0	Solder	Board Edge Right Angle Through Hole	15	-55 °C	125 °C	9.4 mm	0.37 in	2	Gold	Copper Alloy	4-40	Receptacle Female Sockets	7.5 A	D-Sub
Amphenol CONEC 164A12249X	Polybutylene Terephthalate (PBT) Glass Filled	Signal	Black		8 çin	0.203 çm	Mounting Brackets	125 VDC	UL94 V-0	Solder	Board Edge Right Angle Through Hole		-55 °C	125 °C	9.4 mm	0.37 in	2	Gold	Copper Alloy	4-40	Receptacle Female Sockets	7.5 A	D-Sub	B DB	3

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 28.42
		10	$ 24.89
		25	$ 23.81
		50	$ 23.04
		100	$ 22.27
		250	$ 21.05

Description

General part information

164A122 Series

50 Position D-Sub Receptacle, Female Sockets Connector
