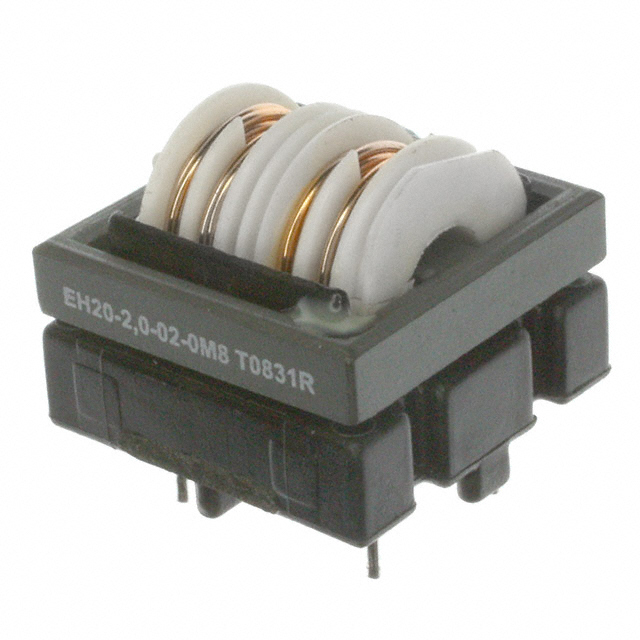

EH20-2.0-02-0M8
ActiveTE Connectivity Raychem Cable Protection
CMC 820UH 2A 2LN TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EH20-2.0-02-0M8
ActiveTE Connectivity Raychem Cable Protection
CMC 820UH 2A 2LN TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EH20-2.0-02-0M8 |
|---|---|
| Current Rating (Max) [Max] | 2 A |
| DC Resistance (DCR) (Max) | 38 mOhm |
| Filter Type | Power Line |
| Height (Max) | 18.8 mm |
| Height (Max) [Max] | 0.74 in |
| Inductance @ Frequency | 10 kHz, 820 µH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature [custom] | 100 °C, -25 °C |
| Package / Case | Horizontal |
| Package / Case | 4 Lead |
| Size / Dimension [x] | 21 mm |
| Size / Dimension [x] | 0.827 in |
| Size / Dimension [y] | 0.827 in |
| Size / Dimension [y] | 21 mm |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.94 | |
| 10 | $ 1.65 | |||
| 25 | $ 1.52 | |||
| 50 | $ 1.36 | |||
| 100 | $ 1.14 | |||
Description
General part information
EH20-2 Series
820 µH @ 10 kHz 2 Line Common Mode Choke Through Hole 2A DCR 38mOhm (Typ)
