806-021-ME9-11P1A
ActiveGlenair

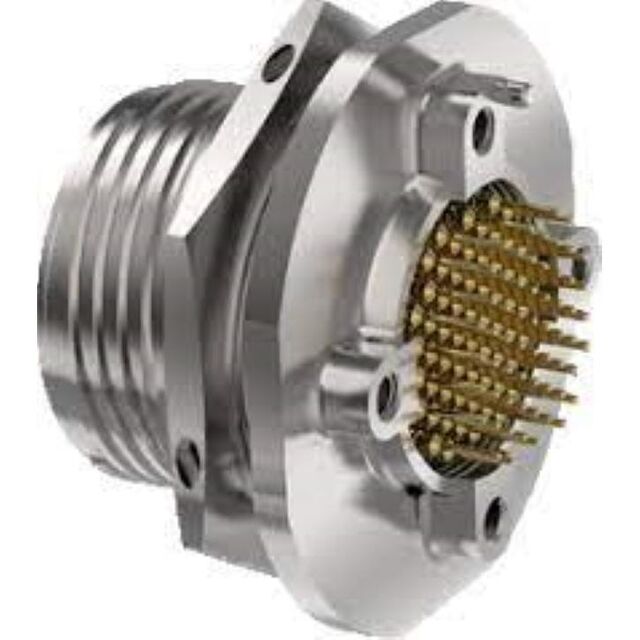

CONN CIRCULAR PIN 11 POS SOLDER ST JAM NUT 11 TERMINAL 1 PORT
Deep-Dive with AI
Search across all available documentation for this part.
806-021-ME9-11P1A
ActiveGlenair
CONN CIRCULAR PIN 11 POS SOLDER ST JAM NUT 11 TERMINAL 1 PORT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 806-021-ME9-11P1A | 806-021 Series |
|---|---|---|
| - | - | |
| Applications | Aerospace | Aerospace |
| Backshell Material, Plating | Aluminum | Aluminum |
| Color | Silver | Silver |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 1.27 µm | 1.27 µm |
| Contact Finish Thickness - Mating | 50 µin | 50 µin |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 5 A | 5 - 7.5 A |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Panel Mount | Through Hole, Panel Mount |
| Number of Positions | 11, 11 | 11 - 39 |
| Operating Temperature [Max] | 200 °C | 200 °C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Orientation | A | A, B |
| Primary Material | Metal | Metal |
| Shell Finish | Electroless Nickel | Electroless Nickel |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert [Max] | 11 | 11 |
| Shell Size - Insert [Min] | 9 | 9 |
| Shielding | Unshielded | Unshielded |
| Termination | Solder | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 1950.94 | |
| 4 | $ 1474.46 | |||
| 10 | $ 921.52 | |||
| 20 | $ 705.78 | |||
| 50 | $ 539.42 | |||
| Bulk | 1 | $ 1284.39 | ||
806-021 Series
MIGHT MOUSE CONNECTOR
| Part | Applications | Shell Finish | Contact Finish - Mating | Mounting Type | Number of Positions | Shell Material | Backshell Material, Plating | Shielding | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Ingress Protection | Current Rating (Amps) | Contact Material | Connector Type | Orientation | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Mounting Feature | Primary Material | Color | Shell Size - Insert [Min] | Shell Size - Insert [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Glenair 806-021-ME14-39P1A | Aerospace | Electroless Nickel | Gold | Panel Mount, Through Hole | 39, 39 | Aluminum | Aluminum | Unshielded | 1.27 µm | 50 µin | Environment Resistant | 5 A, 7.5 A | Copper Alloy | Male Pins, Receptacle | A, B | -65 ░C | 200 °C | Solder | Bulkhead - Front Side Nut | Metal | Silver | ||
Glenair 806-021-ME9-11P1A | Aerospace | Electroless Nickel | Gold | Panel Mount, Through Hole | 11, 11 | Aluminum | Aluminum | Unshielded | 1.27 µm | 50 µin | Environment Resistant | 5 A | Copper Alloy | Male Pins, Receptacle | A | -65 ░C | 200 °C | Solder | Bulkhead - Front Side Nut | Metal | Silver | 9 | 11 |
Glenair 806-021-ME9-11P1A |
Description
General part information
806-021 Series
11 Position Circular Connector Receptacle, Male Pins Solder
