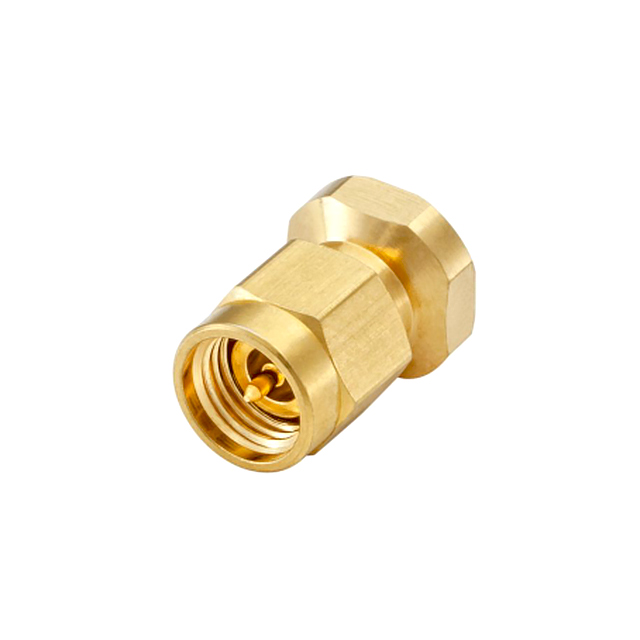

02S17R-001D3

Active

Rosenberger

TERMINATOR PLUG 2.92MM 50OHM

Search across all available documentation for this part.

Active

Rosenberger

TERMINATOR PLUG 2.92MM 50OHM

Technical Specifications

Parameters and characteristics for this part

TERMINATOR PLUG 2.92MM 50OHM

Part	Contact Finish	Connector Type	Impedance	Dielectric Material	Body Material	Mounting Type	Connector Style	Frequency - Max [Max]	Body Finish	Contact Material
Rosenberger 02S17R-001D3	Gold	Male Pin, Plug	50 Ohms	Polyetheretherketone (PEEK)	Brass	Cap, Free Hanging	2.92 mm	40 GHz	Gold	Beryllium Copper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminator Coax Connector Plug, Male Pin 2.92mm 50 Ohms
