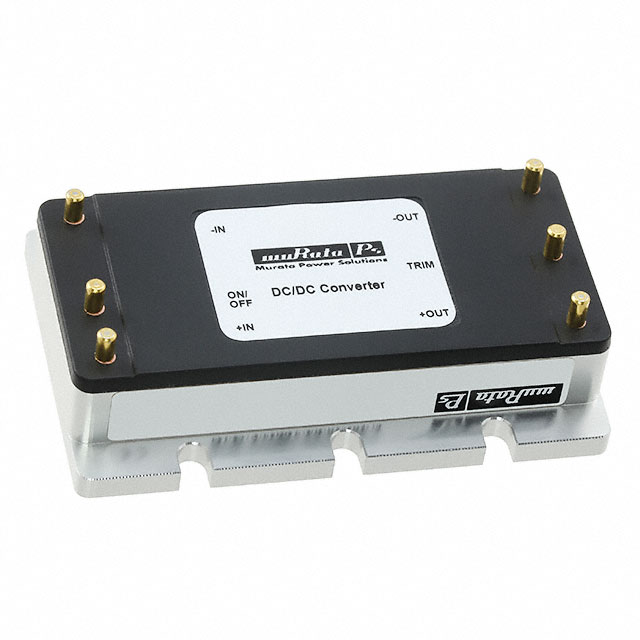

IRQ-24/4.2-T110PVF-C

Active

Murata Power Solutions Inc.

DC DC CONVERTER 24V 100W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC DC CONVERTER 24V 100W

Technical Specifications

Parameters and characteristics for this part

Specification	IRQ-24/4.2-T110PVF-C

Applications	Railway, ITE (Commercial)
Control Features	Active High, Enable
Current - Output (Max) [Max]	4.2 A
Efficiency	88.2 %
Features	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Quarter Brick
Power (Watts)	100 W
Size / Dimension [x]	57.9 mm
Size / Dimension [x]	2.28 in
Size / Dimension [y]	1.45 in
Size / Dimension [y]	36.8 mm
Size / Dimension [z]	12.7 mm
Size / Dimension [z]	0.5 in
Type	Isolated Module
Voltage - Input (Max) [Max]	160 V
Voltage - Input (Min) [Min]	57.6 V
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

DC DC CONVERTER 24V 100W

Part	Voltage - Isolation	Features	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Number of Outputs	Power (Watts)	Voltage - Output 1	Control Features	Efficiency	Current - Output (Max) [Max]	Mounting Type	Package / Case	Voltage - Input (Max) [Max]	Type
Murata Power Solutions Inc. IRQ-24/4.2-T110PVF-C	3000 V	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	57.6 V	85 °C	-40 °C	ITE (Commercial), Railway	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	1	100 W	24 V	Active High, Enable	88.2 %	4.2 A	Through Hole	Quarter Brick	160 V	Isolated Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 120.00

General part information

Isolated Module DC DC Converter 1 Output 24V 4.2A 57.6V - 160V Input
