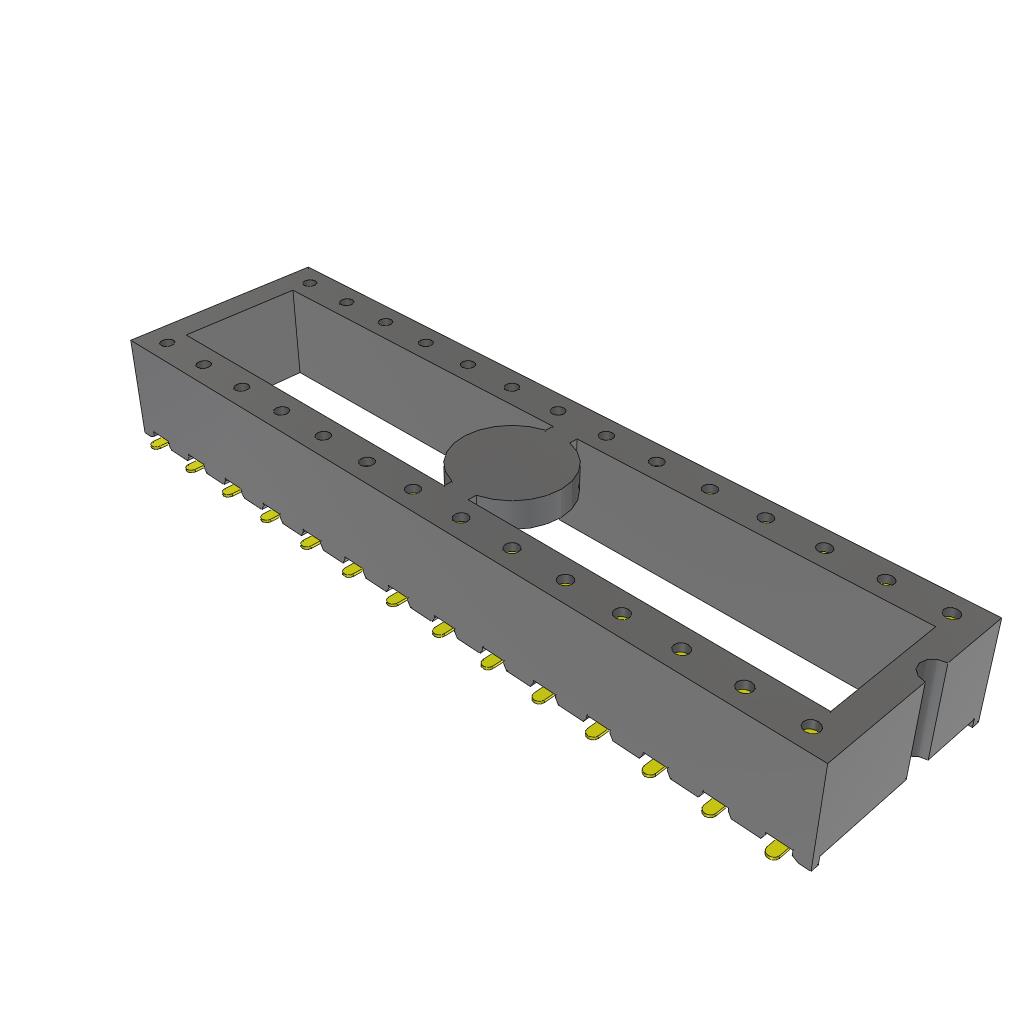

ICF-328-T-O-TR
ActiveSamtec Inc.
.100" SURFACE MOUNT SCREW MACHIN
Deep-Dive with AI
Search across all available documentation for this part.
ICF-328-T-O-TR
ActiveSamtec Inc.
.100" SURFACE MOUNT SCREW MACHIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ICF-328-T-O-TR |
|---|---|
| Contact Finish - Post | Tin |
| Contact Material - Mating | Beryllium Copper |
| Contact Material - Post | Beryllium Copper |
| Features | Open Frame |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Mounting Type | Surface Mount |
| Number of Positions or Pins (Grid) | 28 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Pitch - Post | 2.54 mm |
| Pitch - Post | 0.1 in |
| Termination | Solder |
| Type | 0.3 " |
| Type | 7.62 mm |
| Type | DIP |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.81 | |
| 10 | $ 4.45 | |||
| 25 | $ 4.01 | |||
| 50 | $ 3.72 | |||
| 100 | $ 3.45 | |||
| Tape & Reel (TR) | 350 | $ 3.03 | ||
| 700 | $ 2.82 | |||
| 1050 | $ 2.71 | |||
| 1750 | $ 2.58 | |||
| 2450 | $ 2.50 | |||
| 3500 | $ 2.44 | |||
Description
General part information
ICF-328 Series
28 (2 x 14) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Tin Surface Mount
