SK13DAW01
ActiveKEYLOCK SWITCH, ON-OFF-ON, SPDT, SK SERIES, 3 POSITION, SOLDER, 3 A
Deep-Dive with AI
Search across all available documentation for this part.

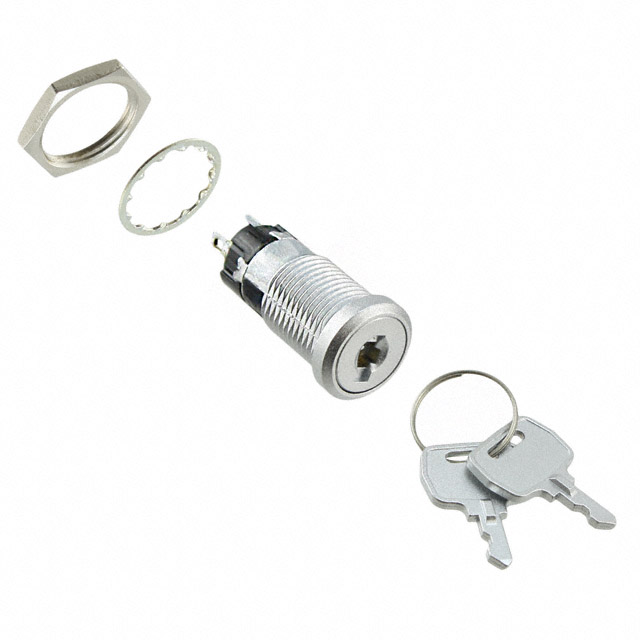

SK13DAW01
ActiveKEYLOCK SWITCH, ON-OFF-ON, SPDT, SK SERIES, 3 POSITION, SOLDER, 3 A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SK13DAW01 |
|---|---|
| Actuator Type | Flat Key |
| Angle of Throw | 45 ° |
| Circuit | SPDT |
| Contact Material | Silver (Ag) |
| Contact Timing | Non-Shorting |
| Current Rating (Amps) | 3 A |
| Depth Behind Flange | 27 mm |
| Electrical Life | 10000 Cycles |
| Features | Epoxy Sealed Terminals |
| Key Removable Positions | All |
| Mechanical Life | 30000 Steps |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 12 mm |
| Switch Function | On-Off-On |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
SK13DA Series
The SK series Keylock Switch with 12mm diameter bushing for easy panel cut-out preparation and high density mounting. It has epoxy sealed terminals prevent entry of flux and other. It has phenolic resin (thermoset) base, silver movable contactor, silver capped copper stationary contacts and silver-plated copper or brass terminals.
