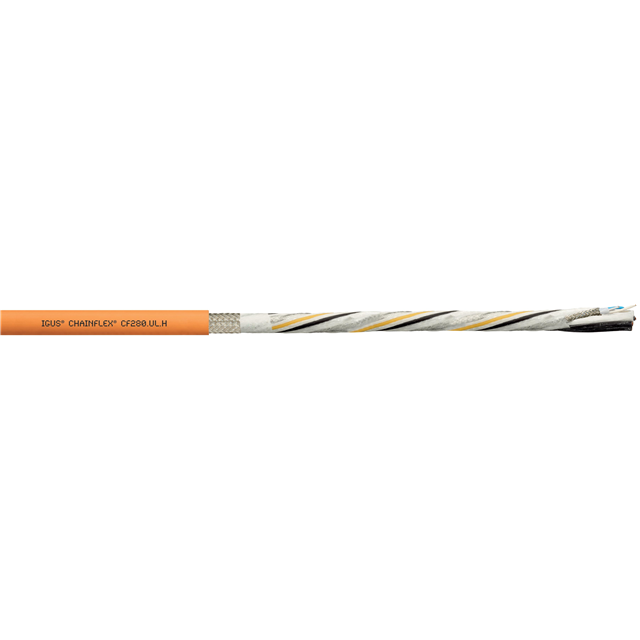

CF280-UL-H501-15-04-D

Active

Igus

CABLE 12COND 16-26AWG ORNG FEET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CF280-UL-H501-15-04-D

Active

Igus

CABLE 12COND 16-26AWG ORNG FEET

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CF280-UL-H501-15-04-D	CF280 Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Thermoplastic Elastomer (TPE)	Thermoplastic Elastomer (TPE)
Conductor Material	Copper, Bare	Copper, Bare
Features	Flame Retardant, Oil Resistant, Abrasion Resistant	Flame Retardant, Oil Resistant, Abrasion Resistant
Jacket (Insulation) Diameter [diameter]	0.591 in	0.394 - 0.787 in
Jacket (Insulation) Diameter [diameter]	15.01 mm	10.01 - 19.99 mm
Jacket (Insulation) Material	Polyurethane (PU)	Polyurethane (PU)
Jacket Color	Orange	Orange
Length	Enter Number of Feet in Order Quantity	Enter Number of Feet in Order Quantity
Number of Conductors	12	7 - 12
Ratings	UL Style 21223	UL Style 20233, UL Style 21223
Shield Coverage	80 %	80 %
Shield Material	Copper, Tinned	Copper, Tinned
Shield Type	Braid	Braid
Usage	Servo Motor, Industrial	Servo Motor, Industrial
Voltage	1000 V	1000 V
Wire Gauge	16 AWG, 26 AWG, 24 AWG, 18 AWG	13.5 - 26 AWG
Wire Gauge	-	12 AWG, 22 AWG, 17 AWG, 18 AWG, 12, 18, 16, 14 AWG, 10

CF280 Series

CABLE 10COND 22AWG/26AWG FEET

Part	Ratings	Shield Material	Conductor Material	Shield Type	Jacket Color	Voltage	Length	Number of Conductors	Cable Type	Shield Coverage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Jacket (Insulation) Material	Conductor Insulation	Usage	Features	Wire Gauge
Igus CF280-UL-H300-03-04-D	UL Style 20233	Copper, Tinned	Copper, Bare	Braid	Orange	1000 V	Enter Number of Feet in Order Quantity	10	Multi-Conductor	80 %	0.394 in	10.01 mm	22 AWG, 26 AWG	Polyurethane (PU)	Thermoplastic Elastomer (TPE)	Industrial, Servo Motor	Abrasion Resistant, Flame Retardant, Oil Resistant
Igus CF280-UL-H102-40-04-D	UL Style 21223	Copper, Tinned	Copper, Bare	Braid	Orange	1000 V	Enter Number of Feet in Order Quantity	8	Multi-Conductor	80 %	0.65 in	16.51 mm		Polyurethane (PU)	Thermoplastic Elastomer (TPE)	Industrial, Servo Motor	Abrasion Resistant, Flame Retardant, Oil Resistant	12 AWG, 17 AWG, 22 AWG
Igus CF280-UL-H200-25-07-D	UL Style 20233	Copper, Tinned	Copper, Bare	Braid	Orange	1000 V	Enter Number of Feet in Order Quantity	9	Multi-Conductor	80 %	0.787 in	19.99 mm	13.5 AWG, 18 AWG	Polyurethane (PU)	Thermoplastic Elastomer (TPE)	Industrial, Servo Motor	Abrasion Resistant, Flame Retardant, Oil Resistant
Igus CF280-UL-H501-15-04-D	UL Style 21223	Copper, Tinned	Copper, Bare	Braid	Orange	1000 V	Enter Number of Feet in Order Quantity	12	Multi-Conductor	80 %	0.591 in	15.01 mm	16 AWG, 18 AWG, 24 AWG, 26 AWG	Polyurethane (PU)	Thermoplastic Elastomer (TPE)	Industrial, Servo Motor	Abrasion Resistant, Flame Retardant, Oil Resistant
Igus CF280-UL-H101-10-04-D	UL Style 21223	Copper, Tinned	Copper, Bare	Braid	Orange	1000 V	Enter Number of Feet in Order Quantity	8	Multi-Conductor	80 %	0.472 in	11.99 mm		Polyurethane (PU)	Thermoplastic Elastomer (TPE)	Industrial, Servo Motor	Abrasion Resistant, Flame Retardant, Oil Resistant	17 AWG, 18 AWG, 22 AWG
Igus CF280-UL-H206-40-04-D	UL Style 20233	Copper, Tinned	Copper, Bare	Braid	Orange	1000 V	Enter Number of Feet in Order Quantity	9	Multi-Conductor	80 %	0.689 in	17.5 mm		Polyurethane (PU)	Thermoplastic Elastomer (TPE)	Industrial, Servo Motor	Abrasion Resistant, Flame Retardant, Oil Resistant	12, 16, 18
Igus CF280-UL-H101-15-04-D	UL Style 21223	Copper, Tinned	Copper, Bare	Braid	Orange	1000 V	Enter Number of Feet in Order Quantity	8	Multi-Conductor	80 %	0.512 in	13.01 mm	16 AWG, 18 AWG, 22 AWG	Polyurethane (PU)	Thermoplastic Elastomer (TPE)	Industrial, Servo Motor	Abrasion Resistant, Flame Retardant, Oil Resistant
Igus CF280-UL-H203-25-04-D	UL Style 20233	Copper, Tinned	Copper, Bare	Braid	Orange	1000 V	Enter Number of Feet in Order Quantity	7	Multi-Conductor	80 %	0.531 in	13.49 mm		Polyurethane (PU)	Thermoplastic Elastomer (TPE)	Industrial, Servo Motor	Abrasion Resistant, Flame Retardant, Oil Resistant	14 AWG, 17 AWG
Igus CF280-UL-H206-60-04-D	UL Style 20233	Copper, Tinned	Copper, Bare	Braid	Orange	1000 V	Enter Number of Feet in Order Quantity	9	Multi-Conductor	80 %	0.748 in	19 mm		Polyurethane (PU)	Thermoplastic Elastomer (TPE)	Industrial, Servo Motor	Abrasion Resistant, Flame Retardant, Oil Resistant	10, 16, 18

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.23
		100	$ 11.75
		500	$ 11.29
		1000	$ 9.85

Description

General part information

CF280 Series

12 (2 Twisted Pairs + 8) Conductor Multi-Conductor Cable Orange 16 AWG, 18 AWG, 24 AWG, 26 AWG Braid Enter Number of Feet in Order Quantity
