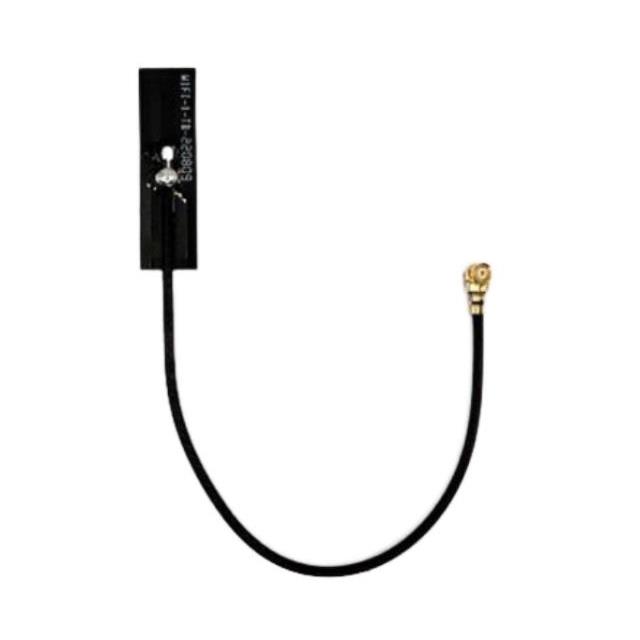

ST0225-10-401-A

Active

AMPHENOL RF

RF ANTENNA, 5.15 TO 5.825GHZ, PCB / IOT / ISM / UNII / WIFI / WWAN / ZIGBEE, LINEAR, MHF1 CONNECTOR

Search across all available documentation for this part.

Active

AMPHENOL RF

RF ANTENNA, 5.15 TO 5.825GHZ, PCB / IOT / ISM / UNII / WIFI / WWAN / ZIGBEE, LINEAR, MHF1 CONNECTOR

Technical Specifications

Parameters and characteristics for this part

RF ANTENNA, 5.15 TO 5.825GHZ, PCB / IOT / ISM / UNII / WIFI / WWAN / ZIGBEE, LINEAR, MHF1 CONNECTOR

Part	Power - Max [Max]	Height (Max) [Max]	Height (Max) [Max]	RF Family/Standard	Return Loss	Mounting Type	Applications	Antenna Type	Frequency Range [Max]	Frequency Range [Min]	Features	Features	Frequency Group	Frequency Group [Min]	Frequency Group [Max]	Gain	Number of Bands	Frequency (Center/Band)
AMPHENOL RF ST0225-10-401-A	1 W	0.85 mm	0.033 in	WiFi	-10 dB	Adhesive	Wi-Fi	PCB Trace	2.5 GHz, 5.85 GHz	2.4 GHz, 5.15 GHz	Cable	100 mm	4 GHz	2 GHz	3 GHz	2.6 dBi	2	2.45 GHz, 5.5 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.45GHz, 5.5GHz Wi-Fi PCB Trace RF Antenna 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz 2.6dBi Adhesive
