337-030-500-208
ActiveEDAC Inc.

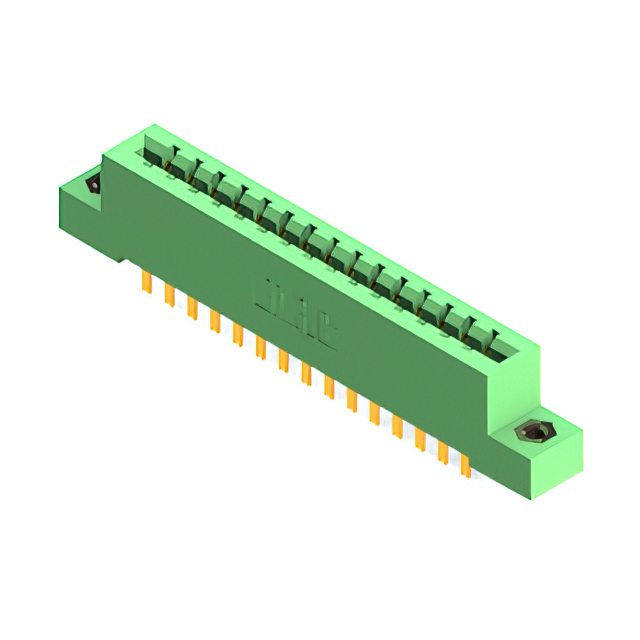

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 30 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
337-030-500-208
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 30 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 337-030-500-208 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 30 |
| Number of Positions/Bay/Row [custom] | 15 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 2 |
337-030 Series
...
| Part | Contact Finish Thickness | Contact Finish Thickness | Card Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Read Out | Mounting Type | Pitch [x] | Pitch [x] | Contact Material | Gender | Flange Feature | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Color | Number of Positions/Bay/Row [custom] | Material - Insulation | Contact Type | Termination Rows | Termination | Number of Rows | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 10 Áin | 0.25 Ám | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Through Hole | 0.156 in | 3.96 mm | Copper Alloy | Female | 4-40 Threaded Insert Top Mount Opening | Gold | -40 °C | 105 ░C | 30 | Green | 30 | Polyester Thermoplastic | Cantilever | 1 | Solder | 1 | |
EDAC Inc. | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Through Hole Right Angle | 0.156 in | 3.96 mm | Copper Alloy | Female | Flush Mount M3 Threaded Insert Top Opening | Gold | -40 °C | 105 ░C | 30 | Green | 15 | Polyester Thermoplastic | Cantilever | 2 | Wire Wrap | 2 | |
EDAC Inc. | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Through Hole | 0.156 in | 3.96 mm | Copper Alloy | Female | Gold | -40 °C | 105 ░C | 30 | Green | 15 | Polyester Thermoplastic | Cantilever | 2 | Wire Wrap | 2 | ||
EDAC Inc. | 10 Áin | 0.25 Ám | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Through Hole Right Angle | 0.156 in | 3.96 mm | Copper Alloy | Female | Flush Mount M3 Threaded Insert Top Opening | Gold | -40 °C | 105 ░C | 30 | Green | 30 | Polyester Thermoplastic | Cantilever | 1 | Wire Wrap | 1 | |
EDAC Inc. | 10 Áin | 0.25 Ám | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Through Hole Right Angle | 0.156 in | 3.96 mm | Copper Alloy | Female | 4-40 Threaded Insert Top Mount Opening | Gold | -40 °C | 105 ░C | 30 | Green | 30 | Polyester Thermoplastic | Cantilever | 1 | Wire Wrap | 1 | |
EDAC Inc. | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Board Edge Straddle Mount | 0.156 in | 3.96 mm | Copper Alloy | Female | 4-40 Threaded Insert Top Mount Opening | Gold | -40 °C | 105 ░C | 30 | Green | 15 | Polyester Thermoplastic | Cantilever | 2 | Solder | 2 | |
EDAC Inc. | 10 Áin | 0.25 Ám | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Through Hole | 0.156 in | 3.96 mm | Copper Alloy | Female | 4-40 Threaded Insert Top Mount Opening | Gold | -40 °C | 105 ░C | 30 | Green | 30 | Polyester Thermoplastic | Cantilever | 1 | Solder | 1 | Card Guides |
EDAC Inc. | 10 Áin | 0.25 Ám | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Through Hole | 0.156 in | 3.96 mm | Copper Alloy | Female | 4-40 Flush Mount Threaded Insert Top Opening | Gold | -40 °C | 105 ░C | 30 | Green | 30 | Polyester Thermoplastic | Cantilever | 1 | Wire Wrap | 1 | |
EDAC Inc. | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Through Hole | 0.156 in | 3.96 mm | Copper Alloy | Female | 4-40 Flush Mount Threaded Insert Top Opening | Gold | -40 °C | 105 ░C | 30 | Green | 15 | Polyester Thermoplastic | Cantilever | 2 | Solder Eyelet(s) | 2 | |
EDAC Inc. | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Through Hole | 0.156 in | 3.96 mm | Copper Alloy | Female | Gold | -40 °C | 105 ░C | 30 | Green | 15 | Polyester Thermoplastic | Cantilever | 2 | Solder | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
337-030 Series
30 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
