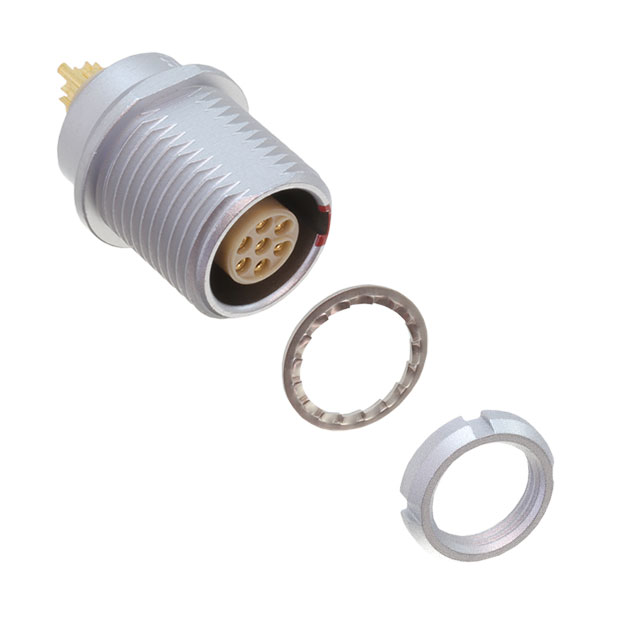

EEG.1B.307.CLL

Active

LEMO

CONN RCPT FMALE 7P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EEG.1B.307.CLL

Active

LEMO

CONN RCPT FMALE 7P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 40.58
		10	$ 35.54
		25	$ 34.00
		50	$ 32.91
		100	$ 31.81
		250	$ 30.05

Description

General part information

EEG.1B Series

7 Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EEG.1B.307.CLL	EEG.1B Series

Color	Silver	Silver
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Current Rating (Amps)	7 A	2 - 15 A
Fastening Type	Push-Pull	Push-Pull
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK), Polytetrafluoroethylene (PTFE)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	-	Through Hole, Panel Mount, Right Angle
Number of Positions	7	1 - 14
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	G	G
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	307	302 - 314
Shielding	Shielded	Shielded
Termination	-	Solder, Crimp

EEG.1B Series

CONN RCPT FMALE 10POS GOLD SLDR

Part	Shell Finish	Connector Type	Shell Material	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Orientation	Color	Current Rating (Amps)	Fastening Type	Material Flammability Rating	Mounting Feature	Ingress Protection	Shell Size - Insert	Contact Finish - Mating	Termination	Primary Material	Insert Material	Mounting Type	Shielding
LEMO EEG.1B.310.CLN	Chrome	Receptacle, Female Sockets	Brass	10	-55 °C	250 °C	Bronze	59 Áin	1.5 Ám	G	Silver	2.5 A	Push-Pull	UL94 V-0	Bulkhead - Front Side Nut	IP50	310	Gold	Solder	Metal	Polyetheretherketone (PEEK)	Panel Mount, Through Hole	Shielded
LEMO EEG.1B.304.CLV	Chrome	Receptacle, Female Sockets	Brass	4	-55 °C	250 °C	Bronze	59 Áin	1.5 Ám	G	Silver	6 A	Push-Pull	UL94 V-0	Bulkhead - Front Side Nut	IP50	304	Gold	Solder	Metal	Polyetheretherketone (PEEK)	Panel Mount, Right Angle, Through Hole	Shielded
LEMO EEG.1B.307.CLN	Chrome	Receptacle, Female Sockets	Brass	7	-55 °C	250 °C	Bronze	59 Áin	1.5 Ám	G	Silver	7 A	Push-Pull	UL94 V-0	Bulkhead - Front Side Nut	IP50	307	Gold	Solder	Metal	Polyetheretherketone (PEEK)	Panel Mount, Through Hole	Shielded
LEMO EEG.1B.314.CLN	Chrome	Receptacle, Female Sockets	Brass	14	-55 °C	250 °C	Bronze	59 Áin	1.5 Ám	G	Silver	2 A	Push-Pull	UL94 V-0	Bulkhead - Front Side Nut	IP50	314	Gold	Solder	Metal	Polyetheretherketone (PEEK)	Panel Mount, Through Hole	Shielded
LEMO EEG.1B.307.CYM	Chrome	Receptacle, Female Sockets	Brass	7	-55 °C	250 °C	Bronze	59 Áin	1.5 Ám	G	Silver	7 A	Push-Pull	UL94 V-0	Bulkhead - Front Side Nut	IP50	307	Gold	Crimp	Metal	Polyetheretherketone (PEEK)		Shielded
LEMO EEG.1B.302.CLL	Chrome	Receptacle, Female Sockets	Brass	2	-55 °C	250 °C	Bronze	59 Áin	1.5 Ám	G	Silver	15 A	Push-Pull	UL94 V-0	Bulkhead - Front Side Nut	IP50	302	Gold		Metal	Polyetheretherketone (PEEK)		Shielded
LEMO EEG.1B.307.CLL	Chrome	Receptacle, Female Sockets	Brass	7	-55 °C	250 °C	Bronze	59 Áin	1.5 Ám	G	Silver	7 A	Push-Pull	UL94 V-0	Bulkhead - Front Side Nut	IP50	307	Gold		Metal	Polyetheretherketone (PEEK)		Shielded
