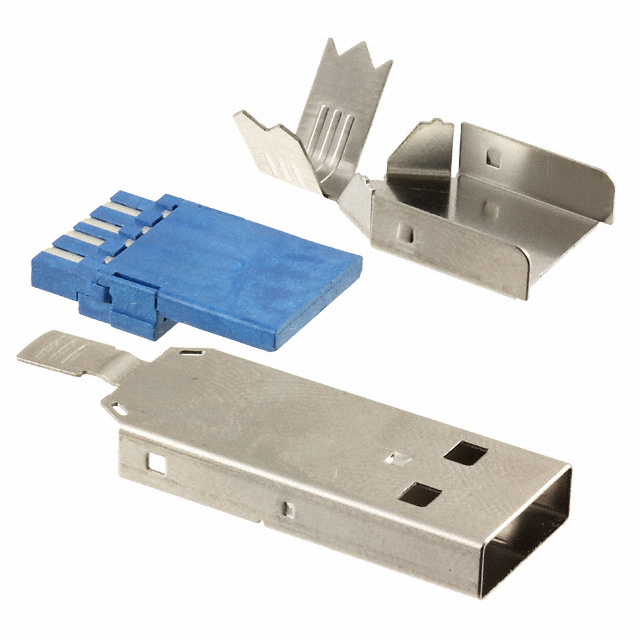

Specification	GSB317131HR

Connector Type	USB-A (USB TYPE-A)
Contact Finish	Gold
Current Rating Options	0.25A, 1.8A
Gender	Plug
Insulation Color	Blue
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Contacts	9
Number of Ports	1
Operating Temperature (Max)	60 °C
Operating Temperature (Min)	-20 °C
Shell/Shielding Material	Steel, Stainless
Specifications	Superspeed (USB 3.0), USB 3.1 Gen 1, USB 3.2 Gen 1
Termination	Solder
Voltage - Rated	30 VAC

GSB31 Series

Part	Number of Ports	Termination	Mounting Type	Voltage - Rated	Current Rating Options	Connector Type	Specifications	Mounting Feature	Gender	Number of Contacts	Features	Shell/Shielding Material	Contact Finish	Insulation Color	Material Flammability Rating	Operating Temperature (Max)	Operating Temperature (Min)	Shielding	Mating Cycles
Amphenol ICC (Commercial Products) GSB311231HR	2	Solder	Panel Mount Right Angle Through Hole	30 VAC	0.25A 1.8A	Stacked USB-A (USB TYPE-A)	Superspeed (USB 3.0) USB 3.1 Gen 1 USB 3.2 Gen 1	Horizontal	Receptacle	18	Board Lock	Stainless Steel	Gold	Blue
Amphenol ICC (Commercial Products) GSB317131HR	1	Solder	Free Hanging (In-Line)	30 VAC	0.25A 1.8A	USB-A (USB TYPE-A)	Superspeed (USB 3.0) USB 3.1 Gen 1 USB 3.2 Gen 1		Plug	9		Stainless Steel	Gold	Blue	UL94 V-0	60 °C	-20 °C
Amphenol ICC (Commercial Products) GSB311A41EU	1	Solder	Right Angle Through Hole	30 VAC	0.25A 1.8A	USB-A (USB TYPE-A)	Superspeed (USB 3.0) USB 3.1 Gen 1 USB 3.2 Gen 1	Horizontal Reverse Mount	Receptacle	9	Board Lock	Stainless Steel	Gold	Blue	UL94 V-0	60 °C	-20 °C
Amphenol ICC (Commercial Products) GSB311131HR	1	Solder	Right Angle Through Hole	30 VAC	0.25A 1.8A	USB-A (USB TYPE-A)	Superspeed (USB 3.0) USB 3.1 Gen 1 USB 3.2 Gen 1	Horizontal	Receptacle	9	Board Lock	Copper Alloy	Gold	Black				Shielded	5000 cycles
