DB3J407K0L

Unknown

Panasonic Industrial Automation Sales

DIODE SCHOT 40V 500MA SMINI3

Search across all available documentation for this part.

Unknown

Panasonic Industrial Automation Sales

DIODE SCHOT 40V 500MA SMINI3

Technical Specifications

Parameters and characteristics for this part

Specification	DB3J407K0L

Capacitance @ Vr, F	12 pF
Current - Average Rectified (Io)	500 mA
Current - Reverse Leakage @ Vr	100 µA
Mounting Type	Surface Mount
Operating Temperature - Junction	125 °C

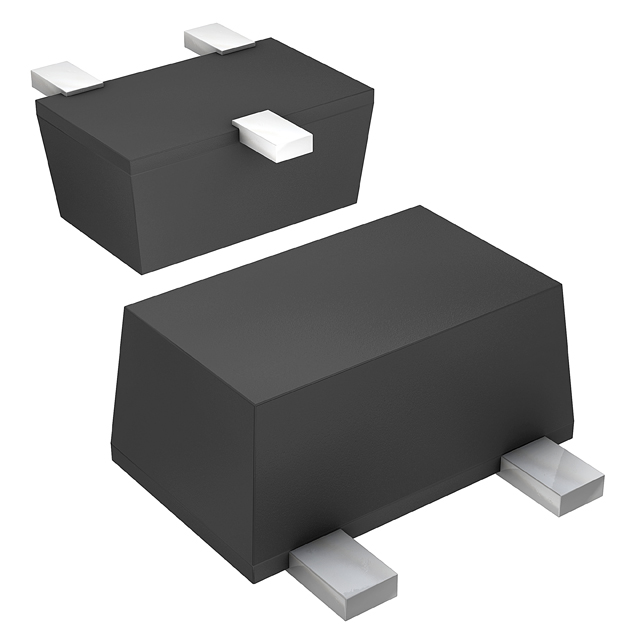

Package / Case	SC-85
Reverse Recovery Time (trr)	5 ns
Speed	200 mA, 500 ns
Supplier Device Package	SMini3-F2-B
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	40 V
Voltage - Forward (Vf) (Max) @ If	550 mV

Part	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Current - Reverse Leakage @ Vr	Operating Temperature - Junction	Current - Average Rectified (Io)	Speed	Supplier Device Package	Technology	Voltage - Forward (Vf) (Max) @ If	Capacitance @ Vr, F	Reverse Recovery Time (trr)	Package / Case
Panasonic Industrial Automation Sales DB3J407K0L	40 V	Surface Mount	100 µA	125 °C	500 mA	200 mA 500 ns	SMini3-F2-B	Schottky	550 mV	12 pF	5 ns	SC-85

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 40 V 500mA Surface Mount SMini3-F2-B
