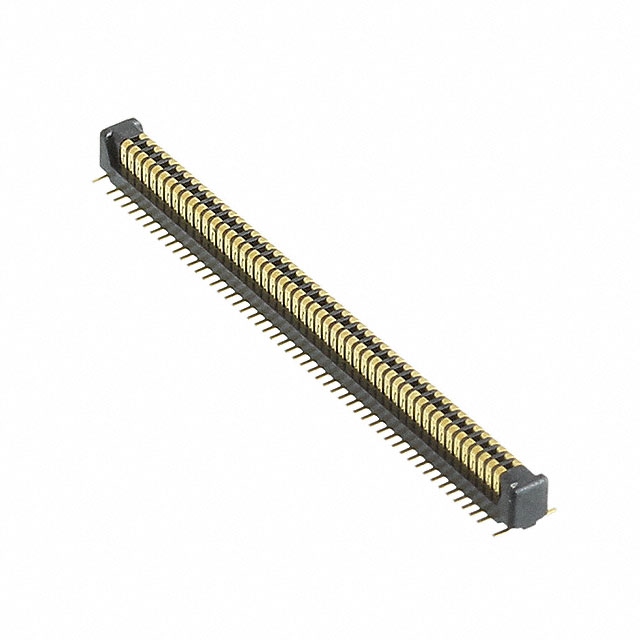

AXT400224

Active

Panasonic Electric Works

CONN HDR 100POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN HDR 100POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXT400224

Connector Type	Header, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board	1.73 mm
Height Above Board	0.068 in
Mated Stacking Heights	2 mm
Mounting Type	Surface Mount
Number of Positions	100
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Connector Type	Number of Rows	Pitch [x]	Pitch [x]	Mounting Type	Contact Finish	Number of Positions	Mated Stacking Heights	Height Above Board	Height Above Board	Features
Panasonic Electric Works AXT400164	Header Center Strip Contacts	2	0.016 in	0.4 mm	Surface Mount	Gold	100	1.5 mm 2.5 mm	0.049 in	1.25 mm	Solder Retention
Panasonic Electric Works AXT400224	Header Center Strip Contacts	2	0.016 in	0.4 mm	Surface Mount	Gold	100	2 mm	0.068 in	1.73 mm	Solder Retention
Panasonic Electric Works AXT400314	Header Center Strip Contacts	2	0.016 in	0.4 mm	Surface Mount	Gold	100	3 mm	0.088 "	2.23 mm	Board Guide Solder Retention
Panasonic Electric Works AXT400124	Header Center Strip Contacts	2	0.016 in	0.4 mm	Surface Mount	Gold	100	1.5 mm 2.5 mm	0.049 in	1.25 mm	Solder Retention
Panasonic Electric Works AXT400114	Header Center Strip Contacts	2	0.016 in	0.4 mm	Surface Mount	Gold	100	1.5 mm 2.5 mm	0.049 in	1.25 mm	Board Guide Solder Retention

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	3000	$ 3.75
