A-PC1503-030031-1

Active

Assmann WSW Components

CORD 18AWG IEC320C13 - CBL 9.84'

Search across all available documentation for this part.

Active

Assmann WSW Components

CORD 18AWG IEC320C13 - CBL 9.84'

Technical Specifications

Parameters and characteristics for this part

Specification	A-PC1503-030031-1

1st Connector	IEC 320-C13, Left Angle
2nd Connector	Cable
Approval Agency Marking	UL
Approved Countries	United States
Color	Black
Cord Type	SJT
Current Rating (Amps)	13 A
Features	Drain Wire
Length [x]	9.84 ft
Length [x]	3 m
Number of Conductors	3
Operating Temperature	60 °C
Shielding	Shielded
Style	Female Sockets (Slots) to Leads
Voltage Rating	250 VDC
Wire Gauge	18 AWG

Part	Operating Temperature	Style	Approval Agency Marking	Length [x]	Length [x]	Voltage Rating	Cord Type	Color	Approved Countries	Shielding	1st Connector	Features	Number of Conductors	Wire Gauge	2nd Connector	Current Rating (Amps)
Assmann WSW Components A-PC1503-030031-1	60 °C	Female Sockets (Slots) to Leads	UL	9.84 ft	3 m	250 VDC	SJT	Black	United States	Shielded	IEC 320-C13 Left Angle	Drain Wire	3	18 AWG	Cable	13 A
Assmann WSW Components A-PC1503-020030-1	60 °C	Female Sockets (Slots) to Leads	UL	6.56 ft	2 m	250 VDC	SJT	Black	United States	Shielded	IEC 320-C13 Left Angle	Drain Wire	3	16 AWG	Cable	13 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

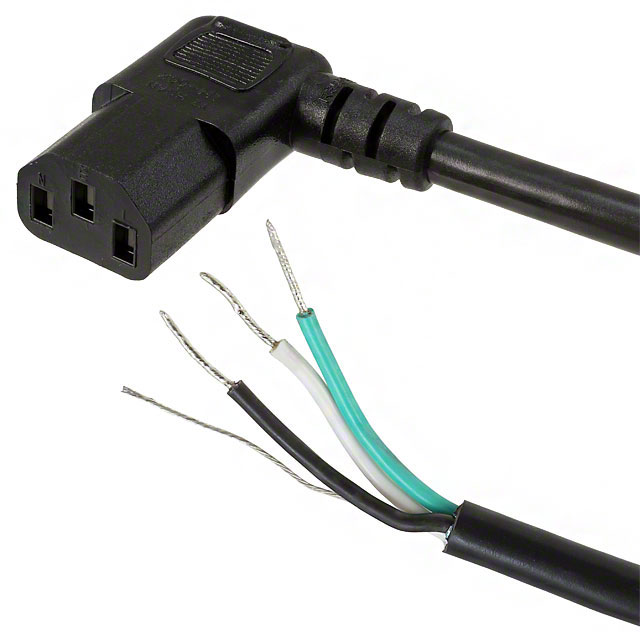

9.84' (3.00m) Power Cord Black IEC 320-C13, Left Angle To Cable SJT
